Rear Seat Entertainment System

AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: B15A6: Display Malfunction
B15A6 - Display Malfunction

DESCRIPTION

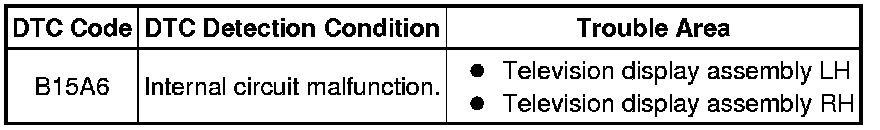

This DTC is stored when a malfunction occurs in the television display assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

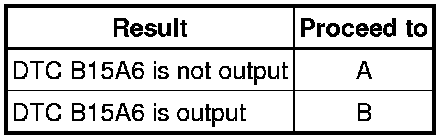

Result





B -- CHECK TELEVISION DISPLAY ASSEMBLY OPERATION

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

3. CHECK TELEVISION DISPLAY ASSEMBLY OPERATION

(a) Check television display assembly operation.

(1) Check which television display assembly does not operate.

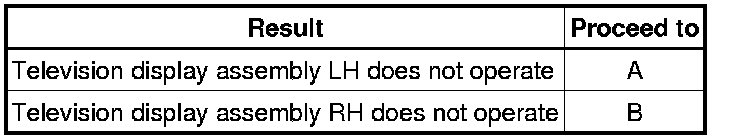

Result





B -- REPLACE TELEVISION DISPLAY ASSEMBLY RH Removal

A -- REPLACE TELEVISION DISPLAY ASSEMBLY LH Removal
