Navigation System

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: B15A6: Display Malfunction
B15A6 - Display Malfunction

DESCRIPTION

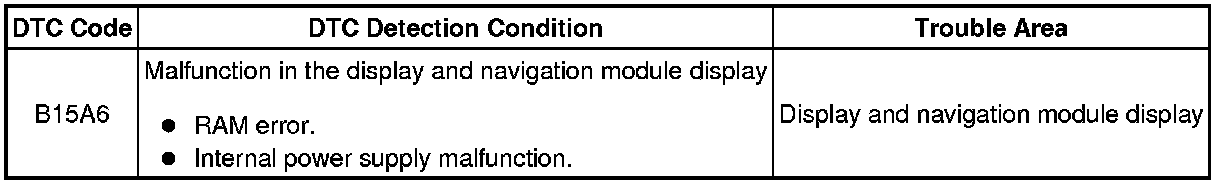

These DTCs are stored when a malfunction occurs in the display and navigation module display.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check for DTCs and check if same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

OK -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure
