LIN Communication System

NETWORKING: LIN COMMUNICATION SYSTEM: B124D, B2432: Lost Communication with AFS LIN
B124D - Lost Communication with AFS LIN
B2432 - Lost Communication with Automatic High Beam Sensor

DESCRIPTION

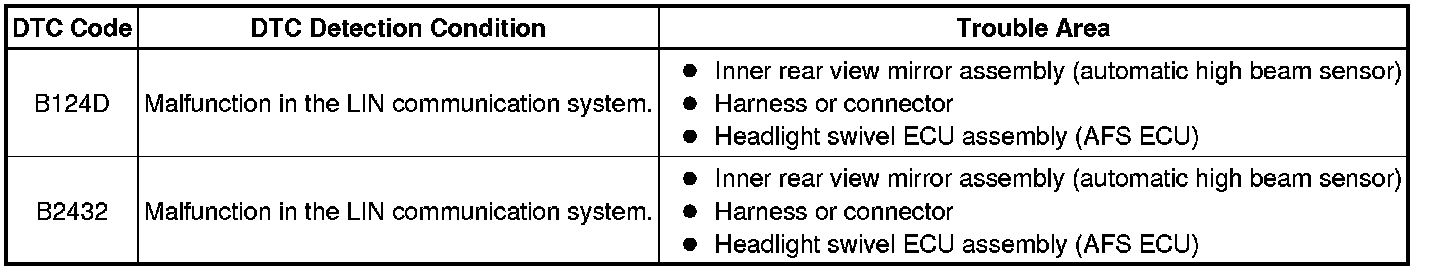

* DTC B124D is stored when the main body ECU detects malfunctions in the LIN communication system.

* DTC B2432 is stored when the headlight swivel ECU (AFS ECU) detects malfunctions in the LIN communication system.





INSPECTION PROCEDURE

Refer to Lighting System "DTC B124D" B124D.
