Parts Location: Illustration

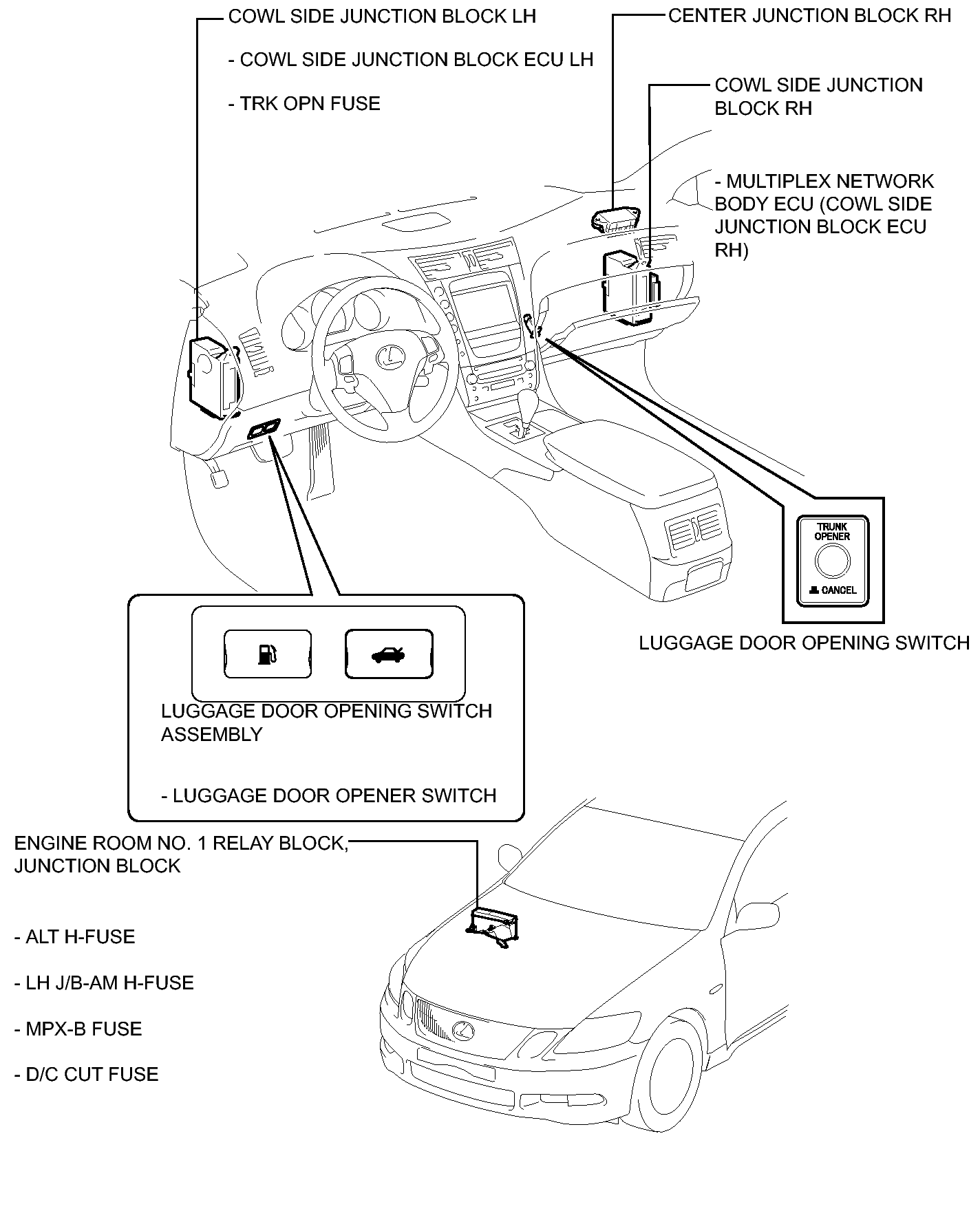

Fig 1: Identifying Luggage Compartment Door Opener & Closer System Components (1 Of 2)
GTY288894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

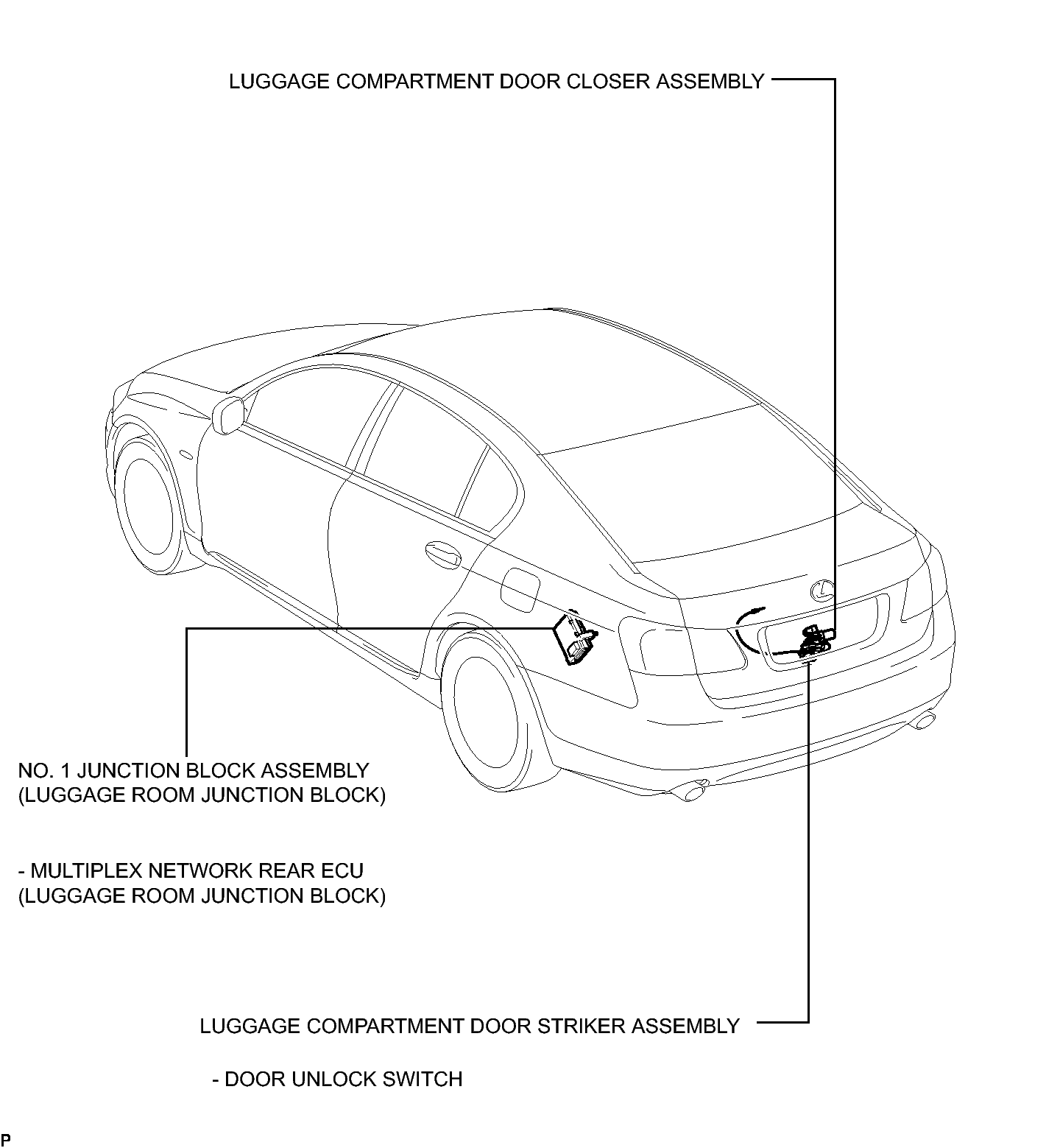

Fig 1: Identifying Luggage Compartment Door Opener & Closer System Components (2 Of 2)
GTY264894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
