Driver Side Junction Block ECU Power Source Circuit: Procedure

1. Remove the TRK OPN fuse from the cowl side junction block LH.
2. Remove the MPX-B and D/C CUT fuses from the engine room No. 1 relay block.
3. Measure the resistance of the fuses.

   Standard resistance

   Below 1 Ω

NG → REPLACE FUSE

OK: Go to next step

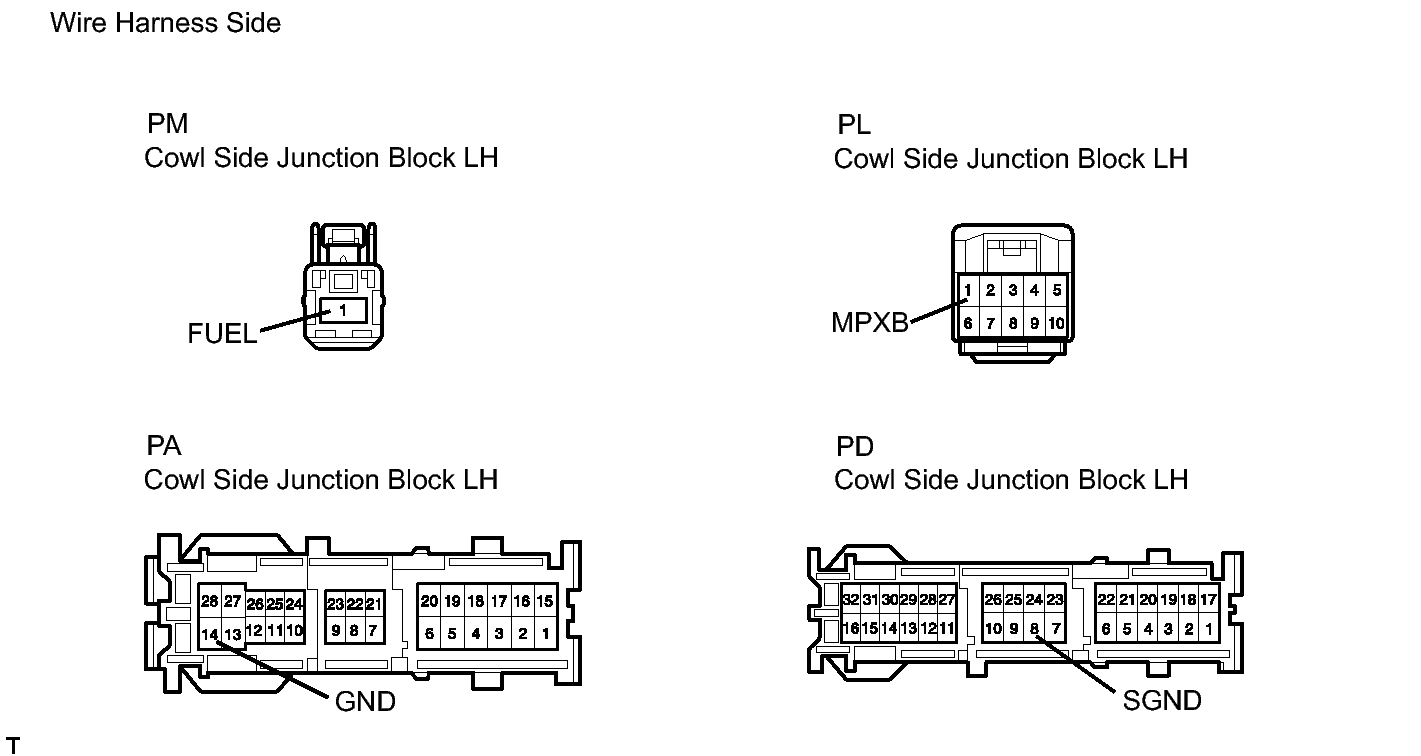

Fig 1: Identifying Cowl Side Junction Block Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the PM, PL, PA and PD junction block connectors.
2. Measure the voltage and resistance of the wire harness side connectors.

   Standard voltage

   Tester Connection	Specified Condition
   PM-1 (FUEL) - Body ground	10 to 14 V
   PL-1 (MPXB) - Body ground	10 to 14 V

   Standard resistance

   Tester Connection	Specified Condition
   PA-14 (GND) - Body ground	Below 1 Ω
   PD-8 (SGND) - Body ground	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
