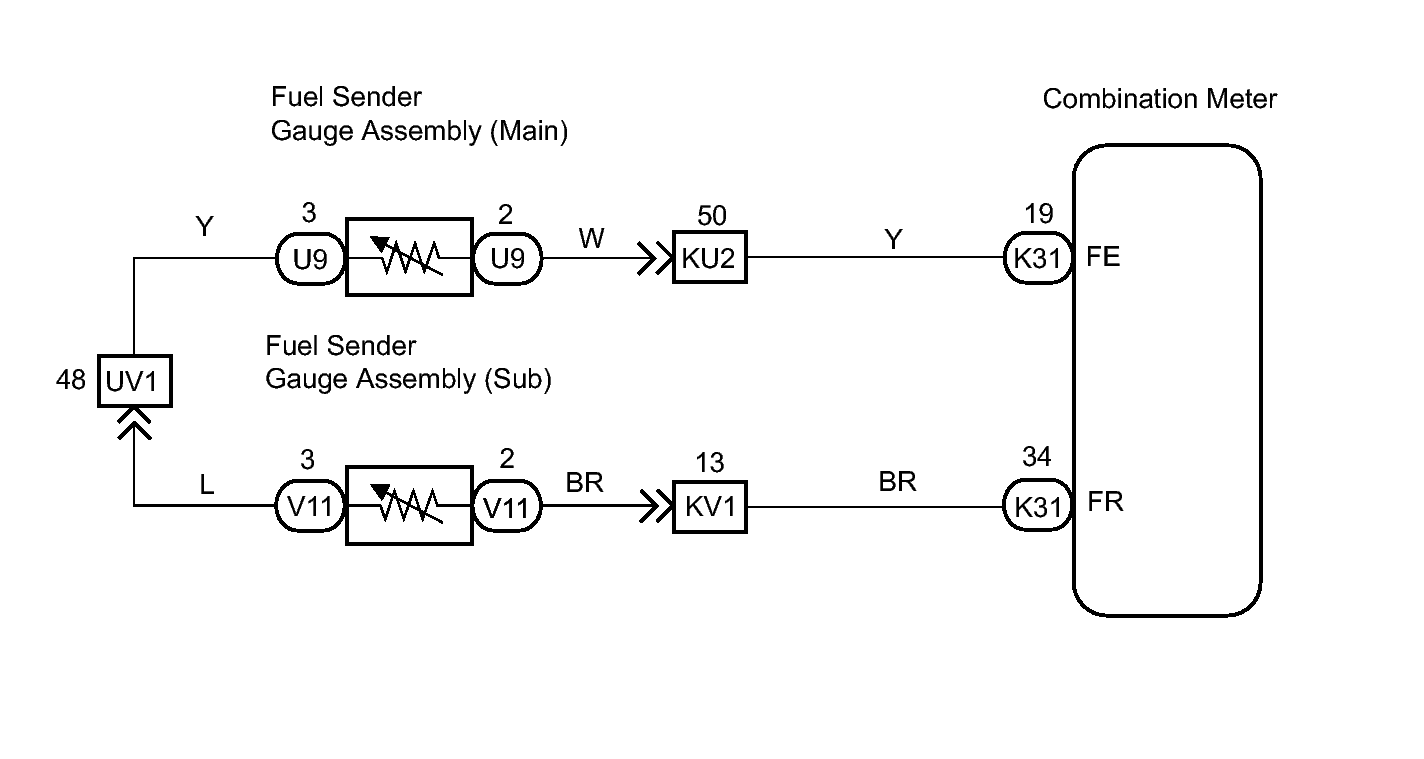

Home >> Lexus >> 2011 >> GS 350 AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter & Gauge System (Diagnostics & Symptom Tests) >> Meter / Gauge System >> Symptom Tests >> Fuel Gauge Malfunction >> Wiring Diagram
