Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

  1. w/o Occupant Classification System

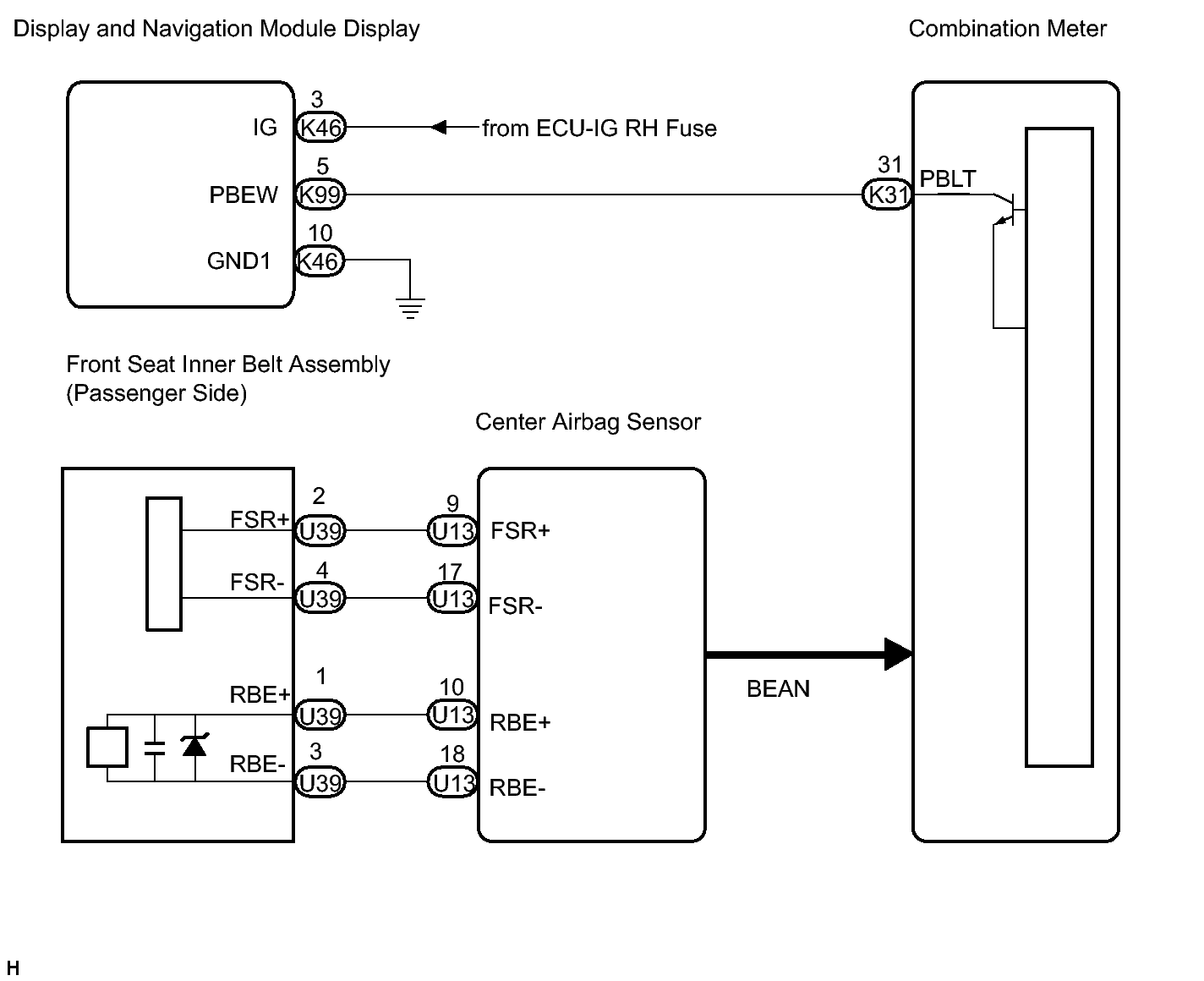

    Fig 1: Identifying Front Passenger Side Seat Belt Warning Light W/O Occupant Classification System - Wiring Diagram
    GTY275415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Occupant Classification System

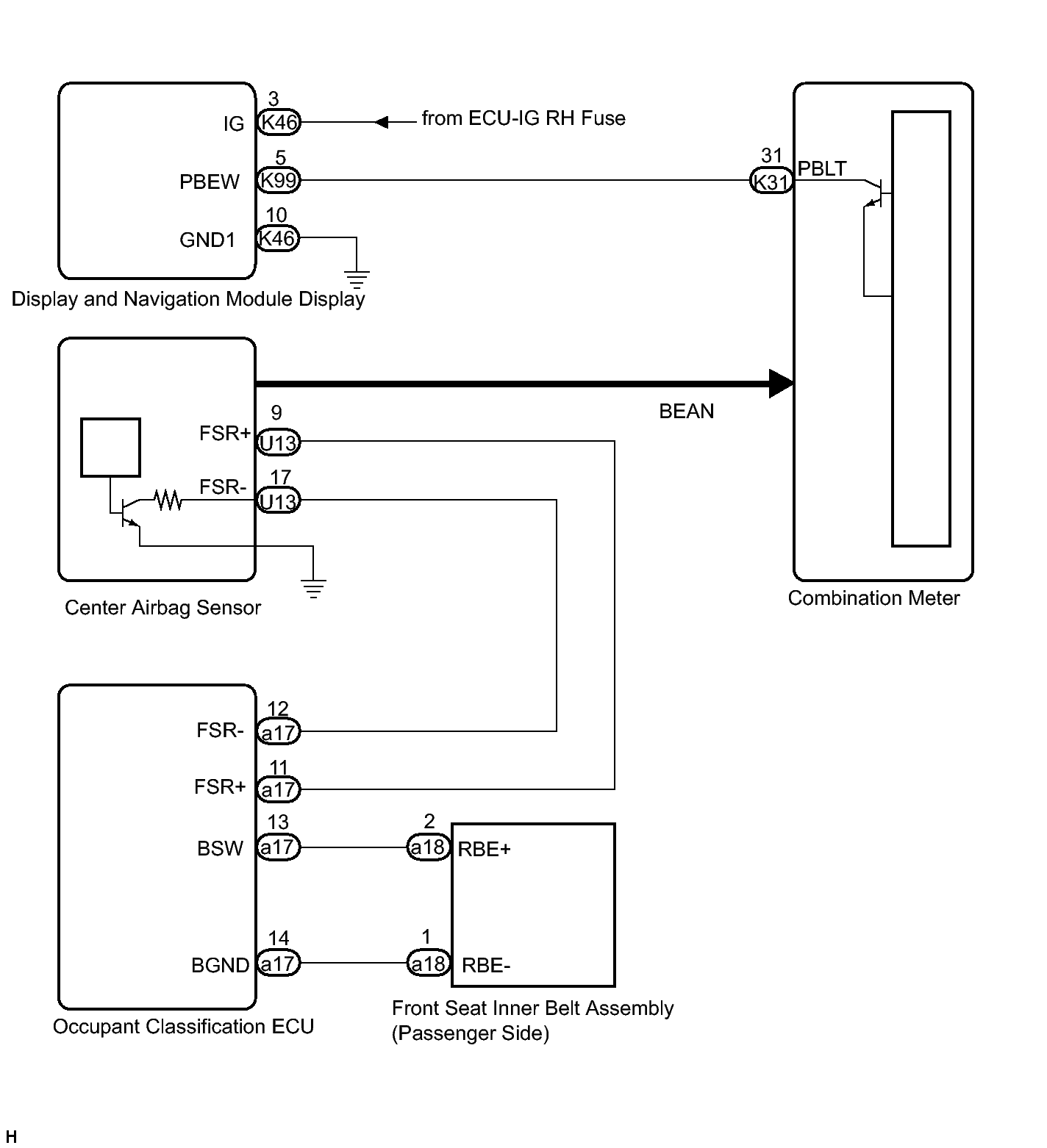

    Fig 2: Identifying Front Passenger Side Seat Belt Warning Light W/ Occupant Classification System - Wiring Diagram
    GTY272906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
