Engine Coolant Temperature Gauge Malfunction: Wiring Diagram

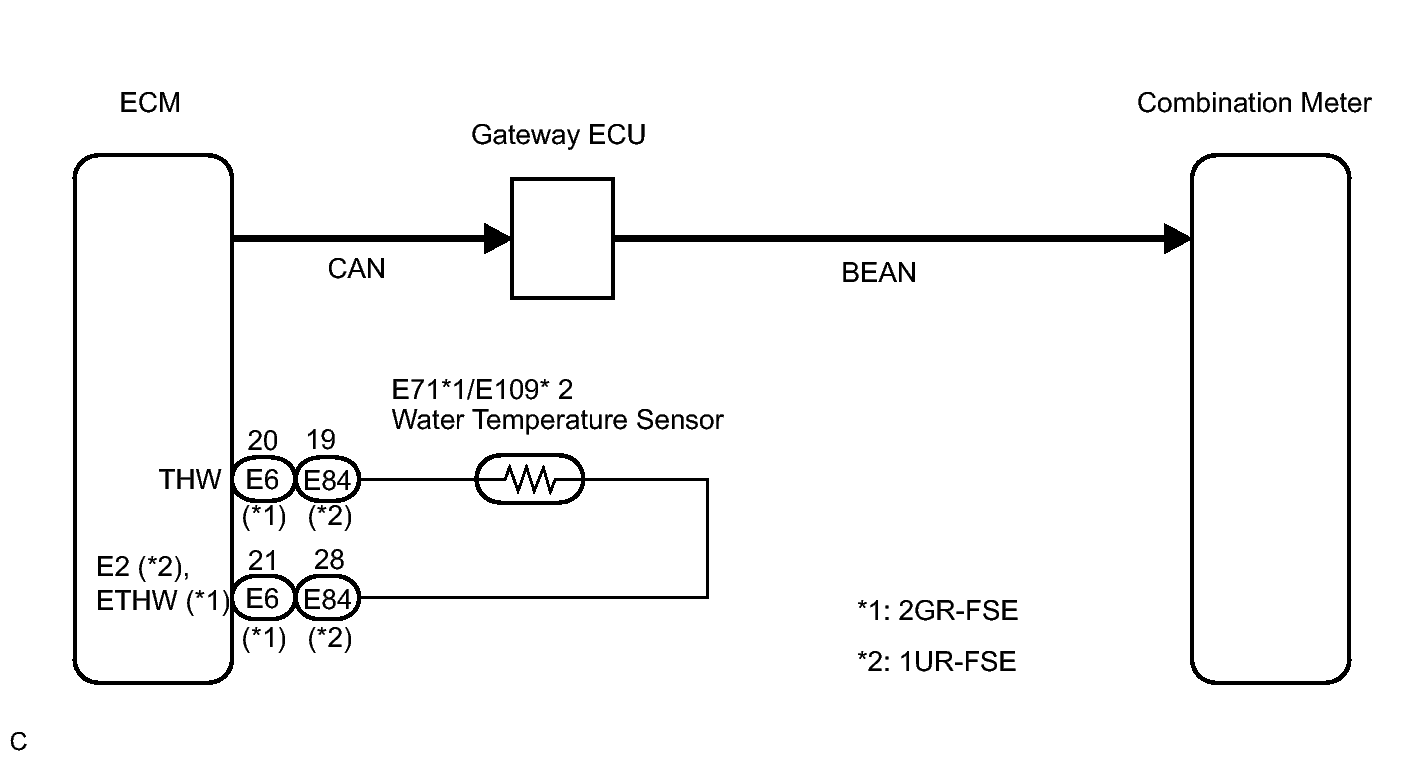

Fig 1: Identifying Engine Coolant Temperature Gauge -- Wiring Diagram

GTY283149

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
