Cluster Glass does not Become Tinted: Wiring Diagram

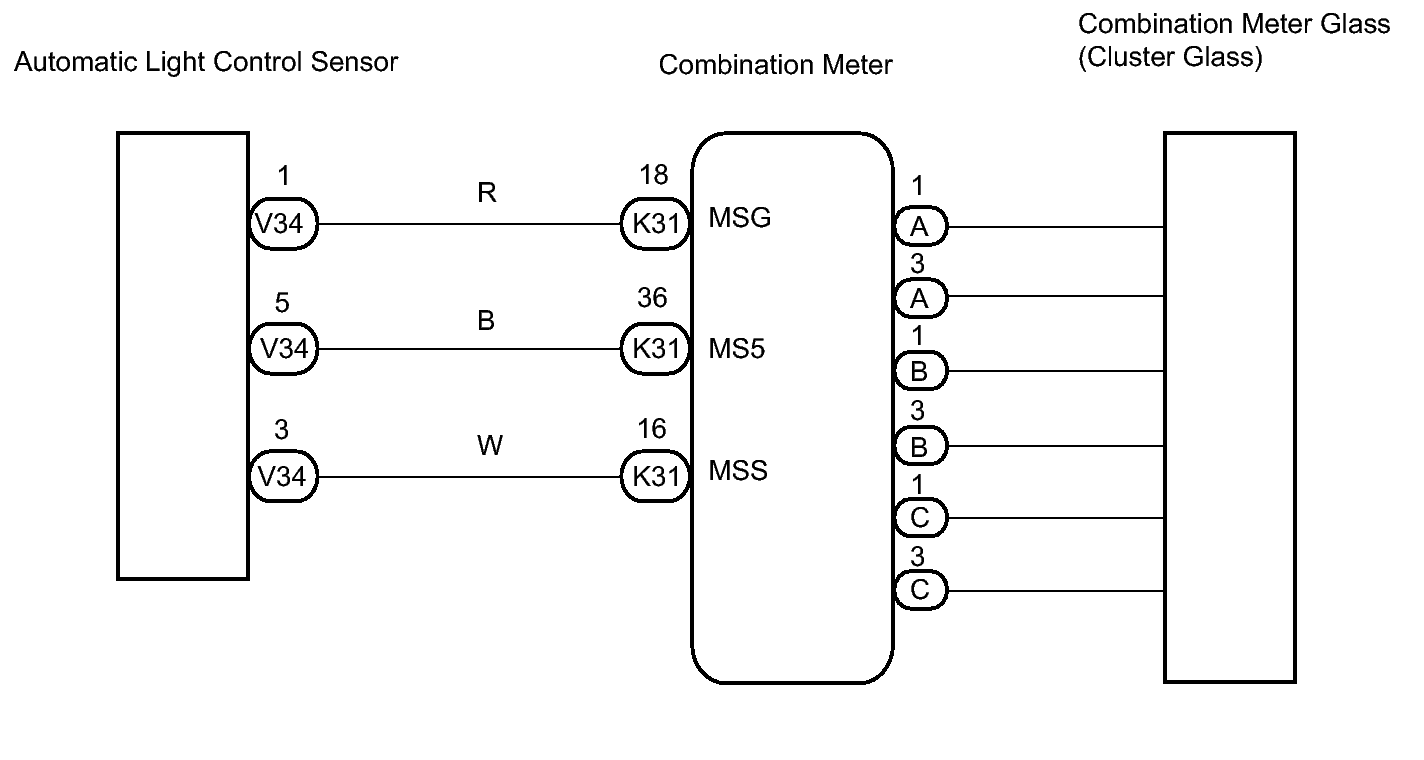

Fig 1: Automatic Light Control Sensor - Wiring Diagram

GTY101455

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
