Parts Location: Illustration

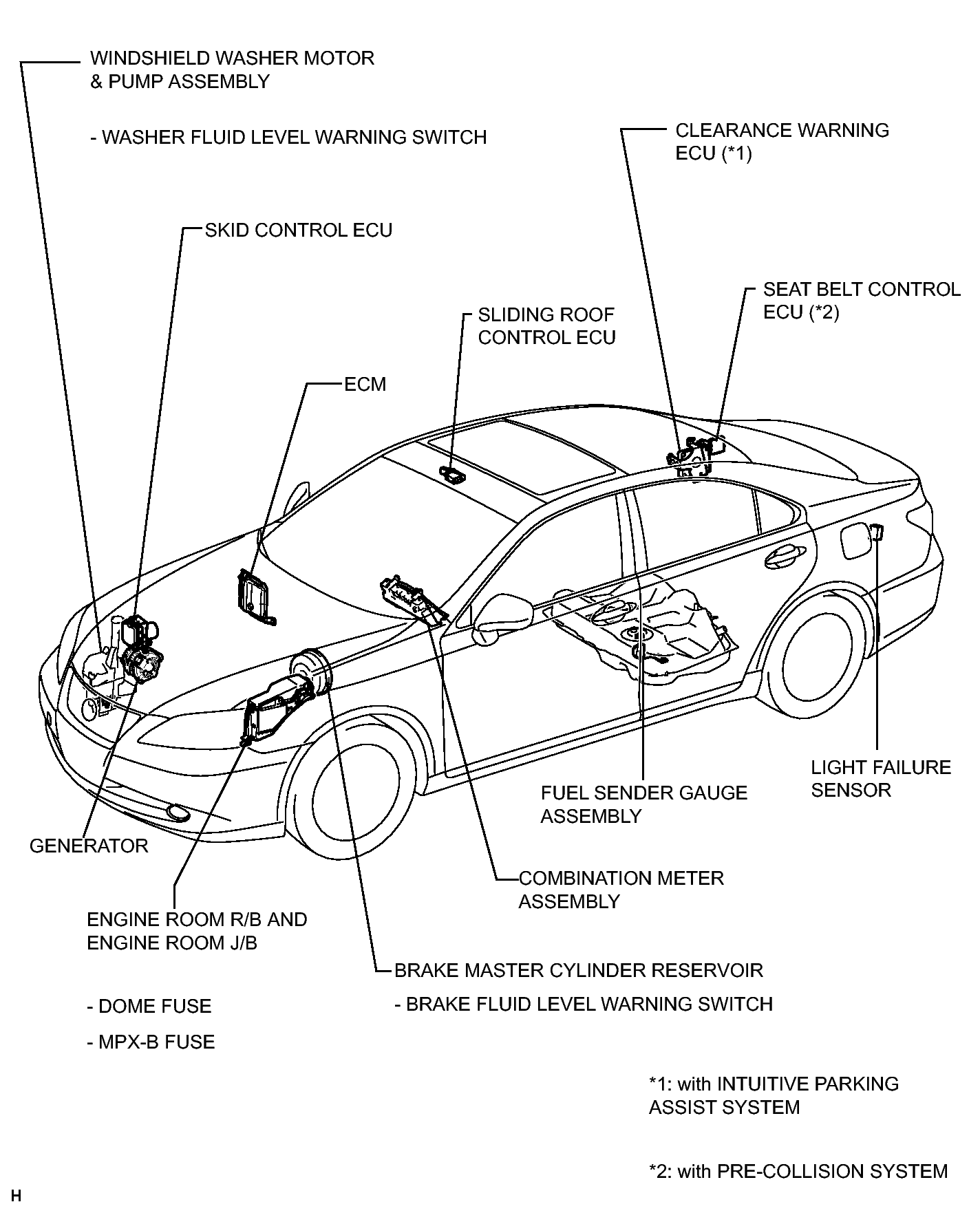

Fig 1: Identifying Meter/Gauge System Components Location (1 Of 4)
GTY122715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

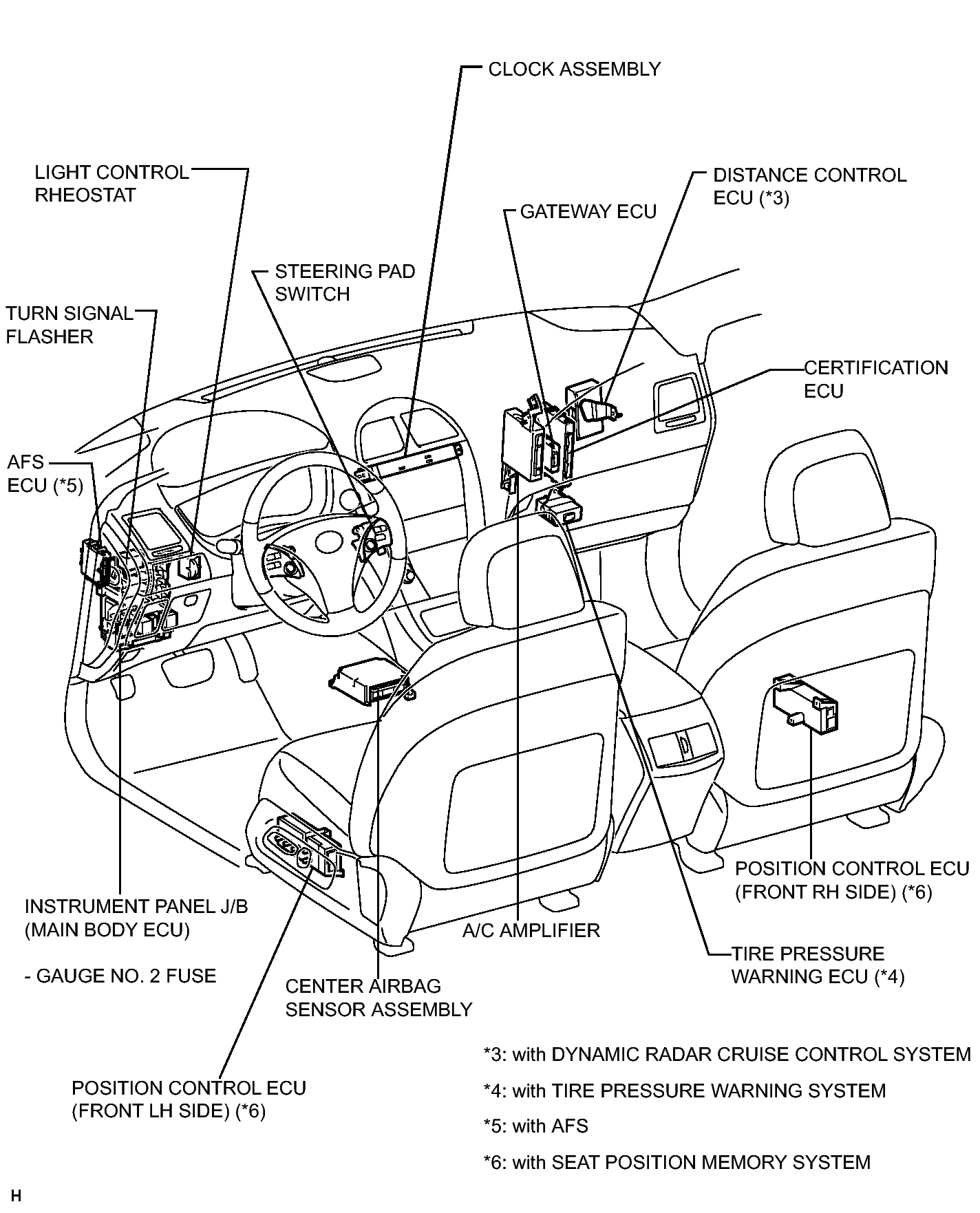

Fig 1: Identifying Meter/Gauge System Components Location (2 Of 4)
GTY152076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

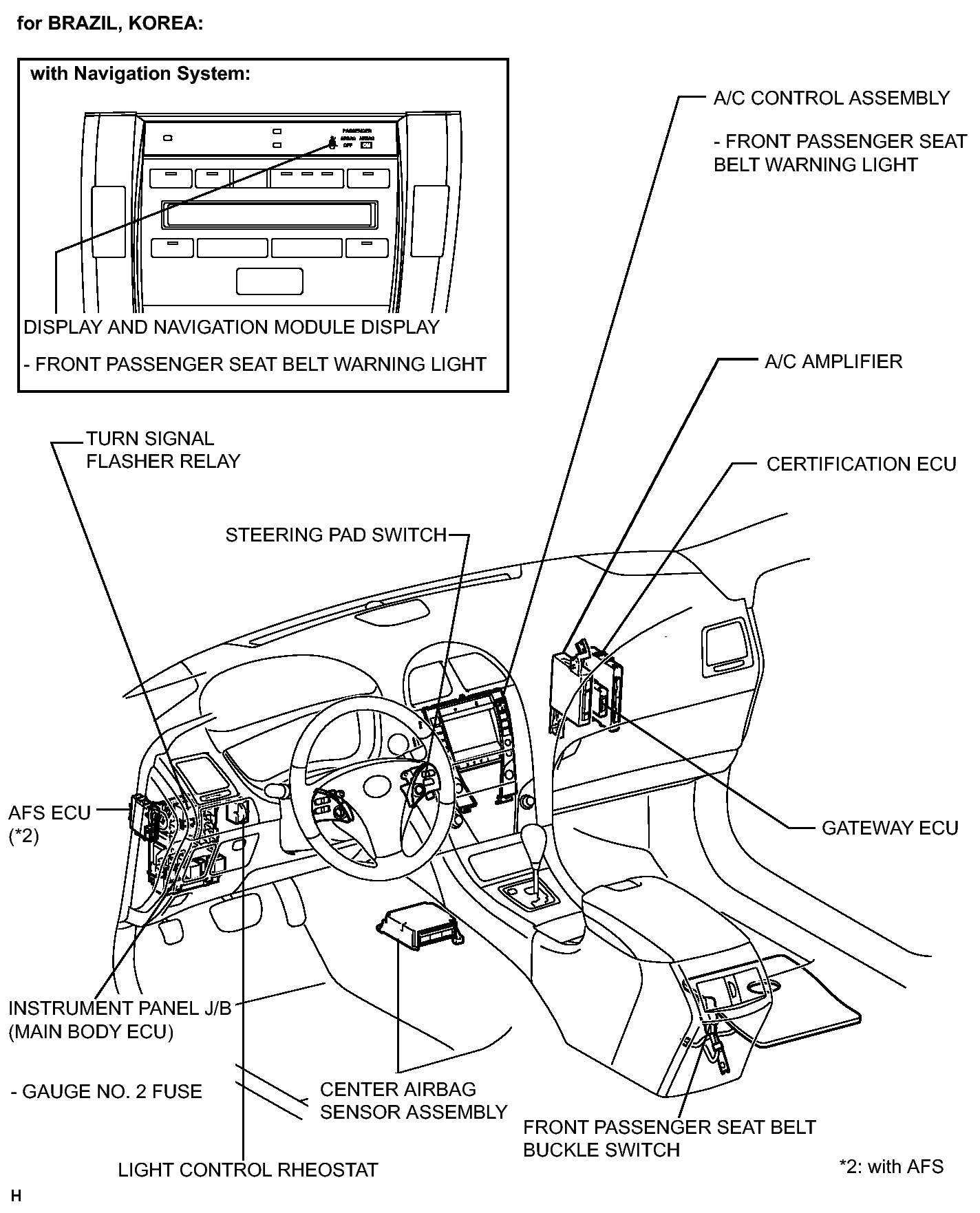

Fig 1: Identifying Meter/Gauge System Components Location (3 Of 4)
GTY267662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

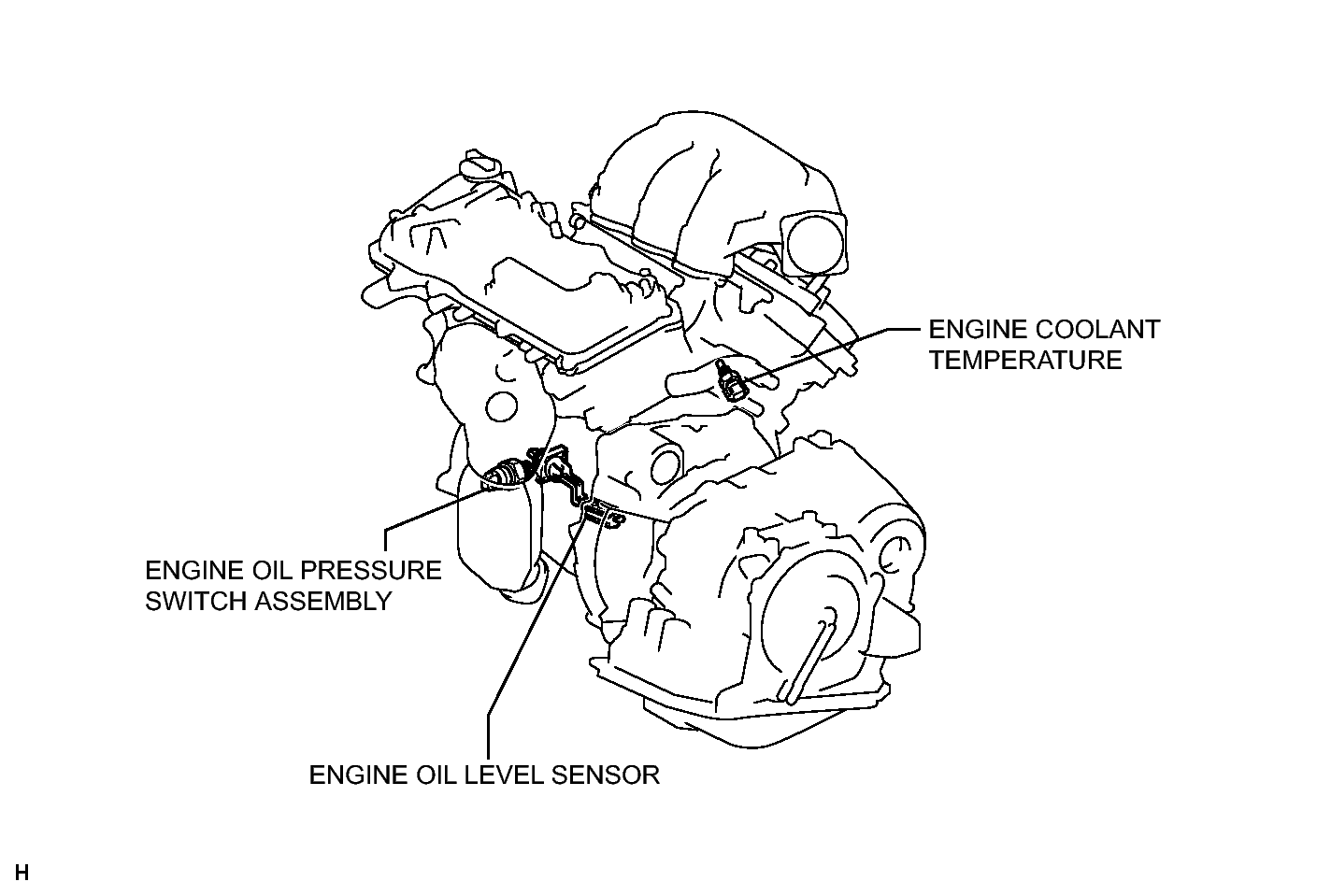

Fig 1: Identifying Meter/Gauge System Components Location (4 Of 4)
GTY131118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
