Meter & Gauge System (Diagnostic Codes & Symptom Tests)
>>
Meter/Gauge System
>>
Speed Signal Circuit
>>
Wiring Diagram
Speed Signal Circuit: Wiring Diagram
for 2GR-FE

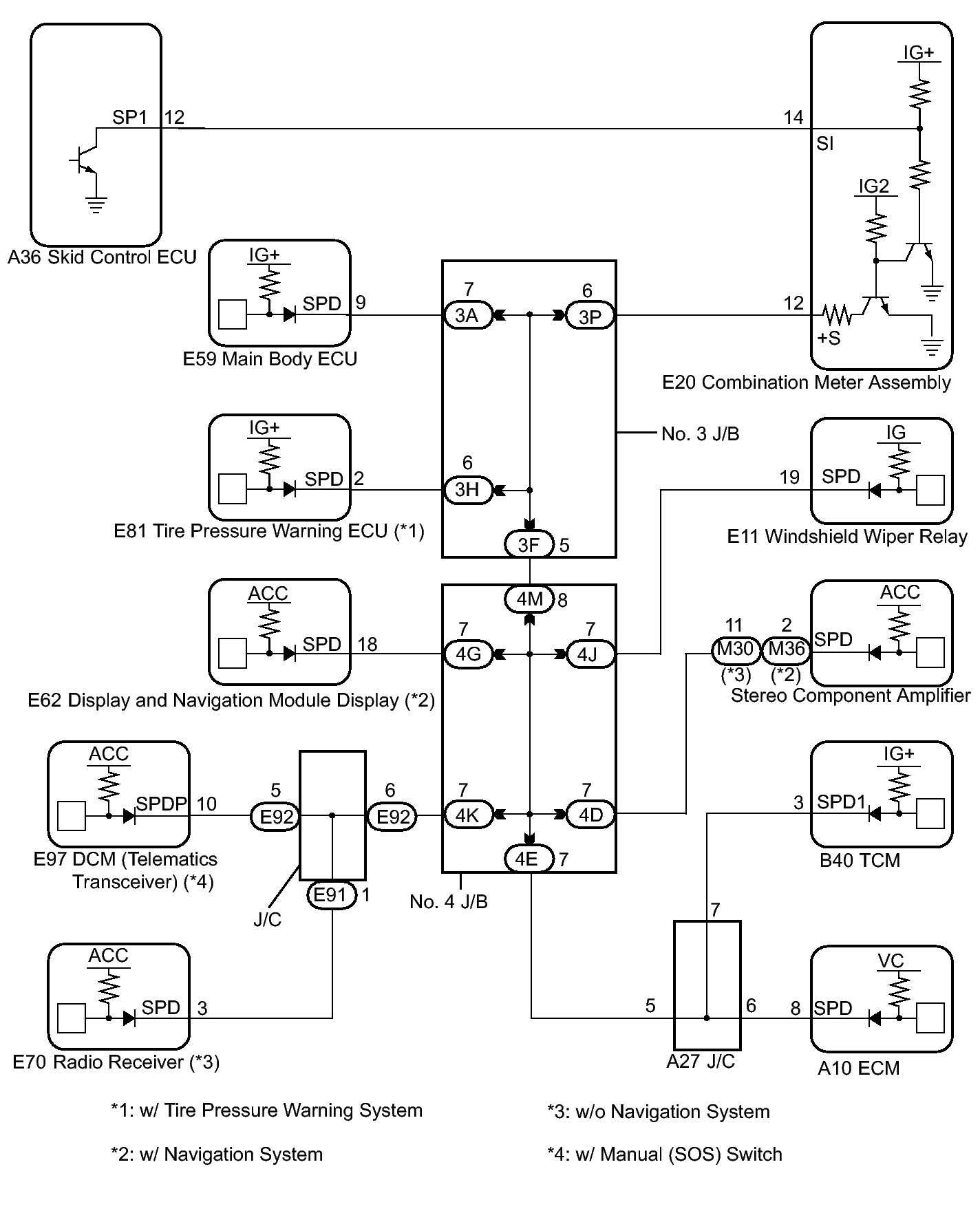

Fig 1: Vehicle Speed Signal Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
