Speed Signal Circuit: Wiring Diagram

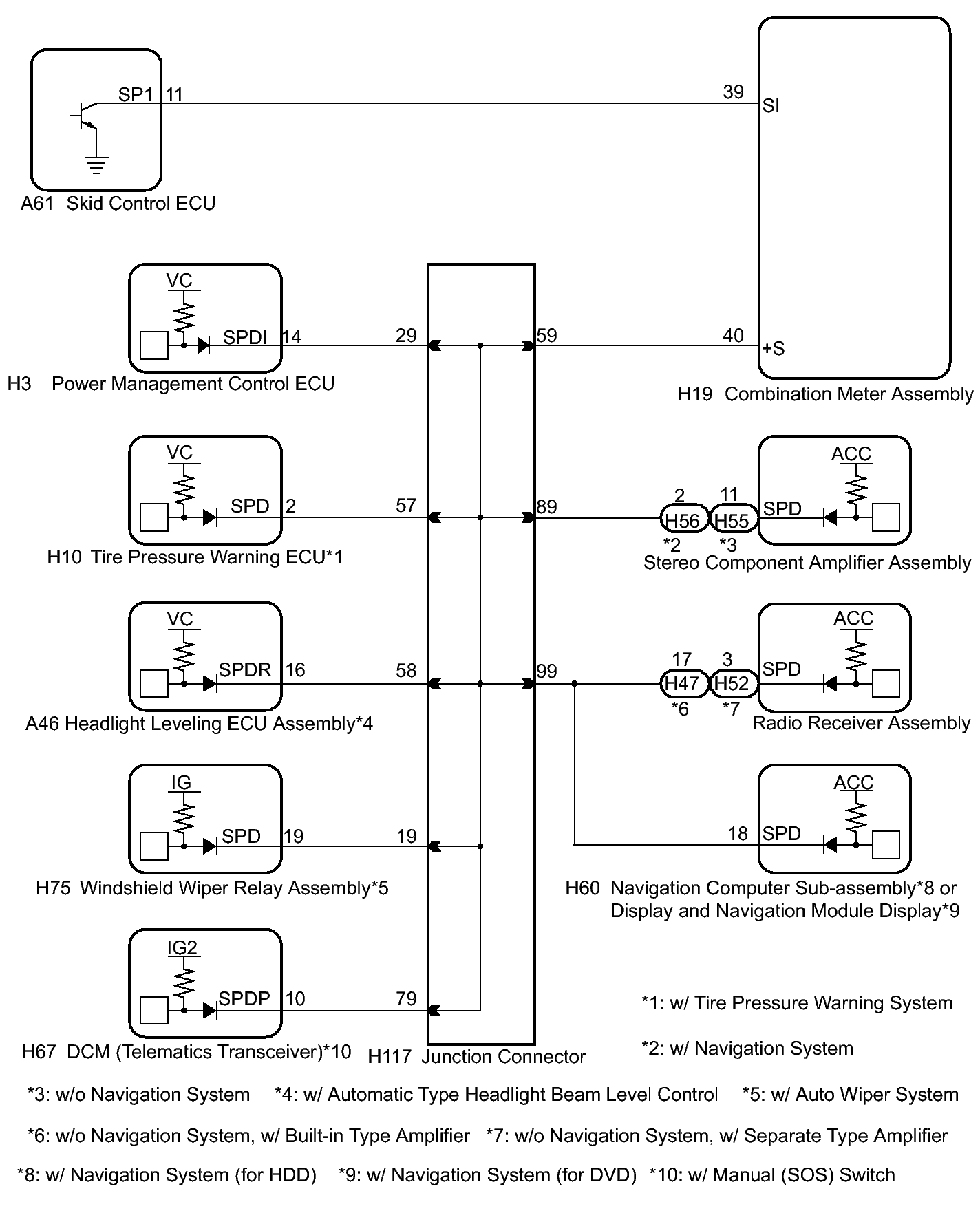

Fig 1: Identifying Vehicle Speed Sensor Signal Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
