Location of Connector Joining Wire Harness and Wire Harness

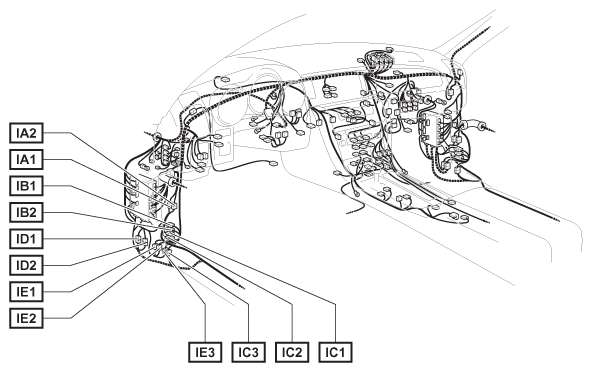

Fig 1: Locating Wire Harnesses Points
G07605853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

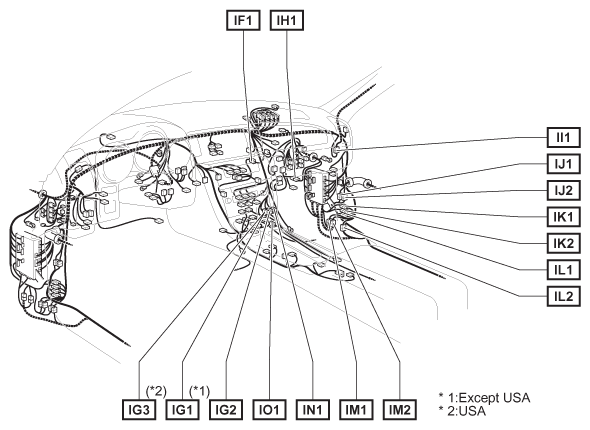

Fig 1: Locating Wire Harnesses Points
G07605855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

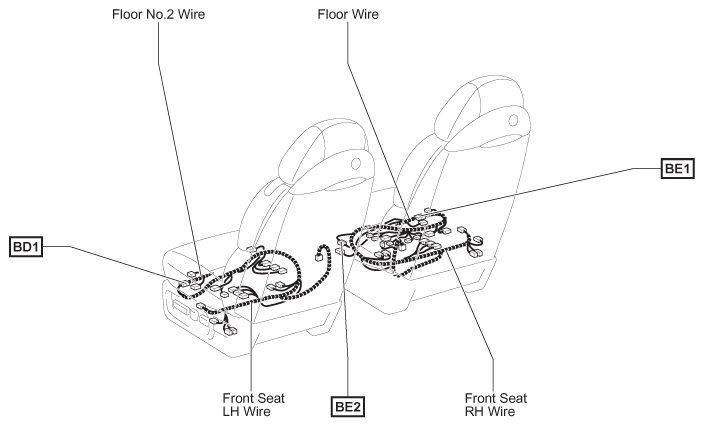

Fig 1: Locating Wire Harnesses Points
G07605857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
