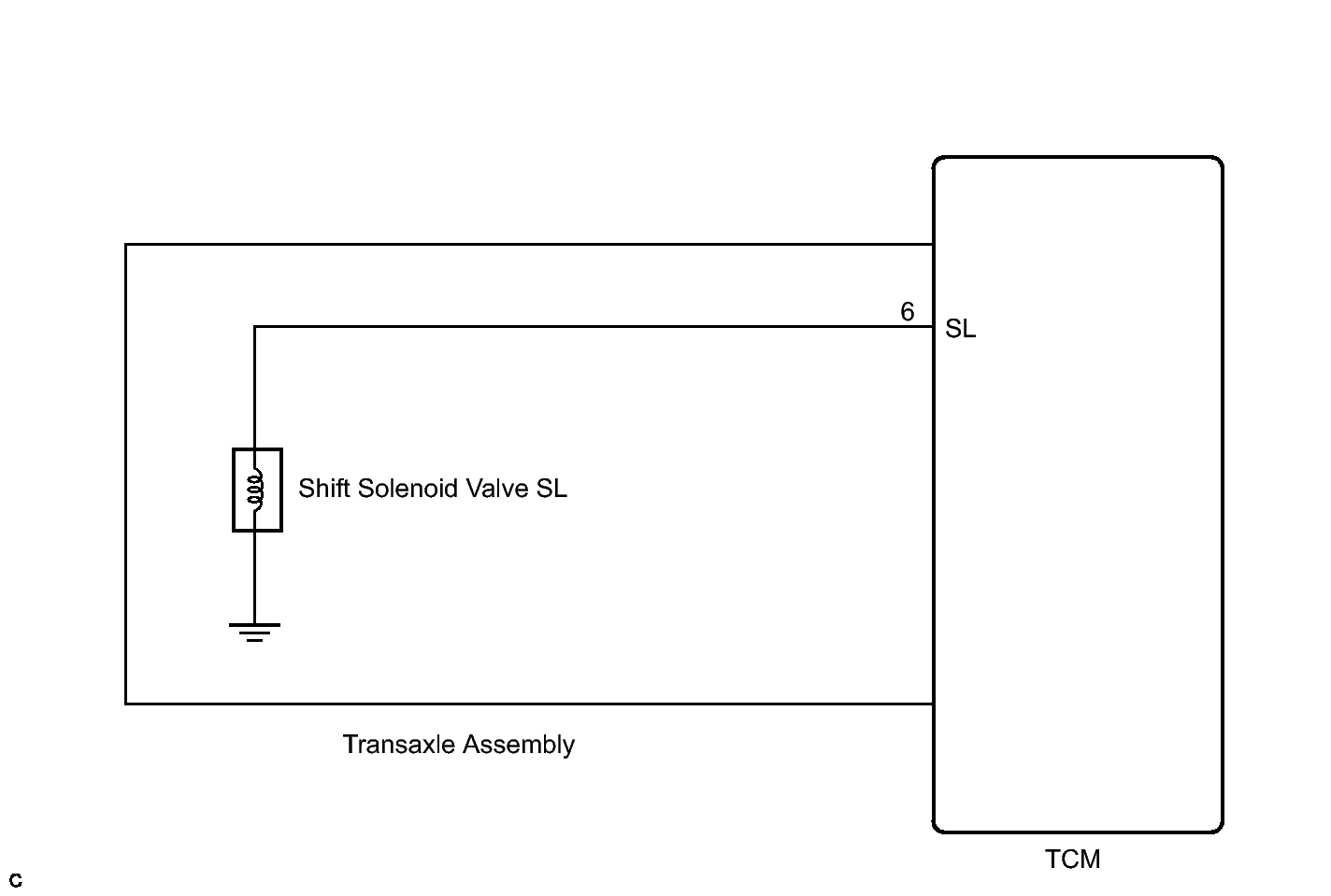

DTC P2769: Short in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL); DTC P2770: Open in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL) (TO 08/2009): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
