DTC C1752: Height Control Compressor Motor Circuit Malfunction (TO 08/2009): Wiring Diagram

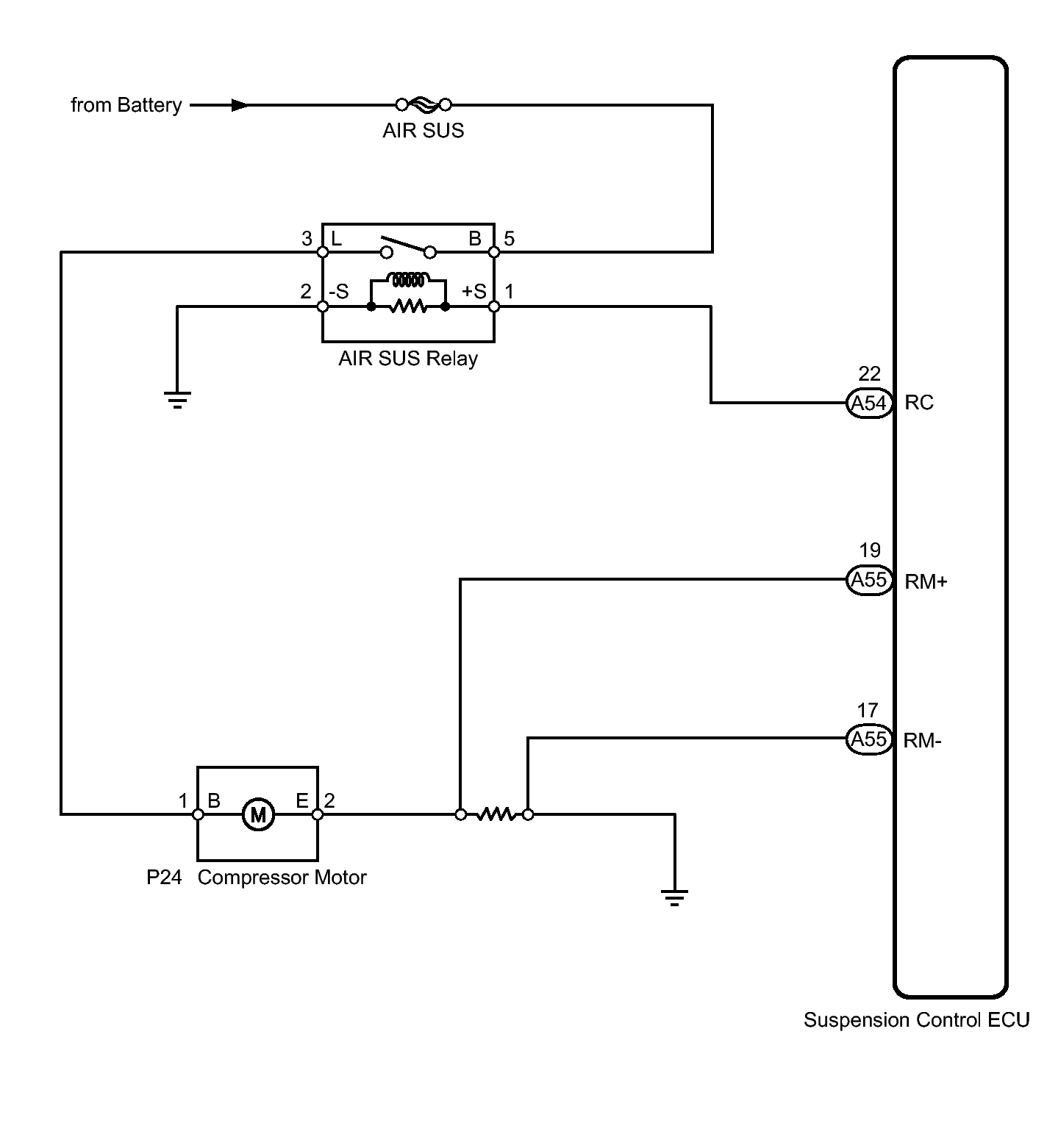

Fig 1: Identifying Height Control Compressor Motor Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
