DTC C1751: Compressor Relay Coil Malfunction (TO 08/2009): Wiring Diagram

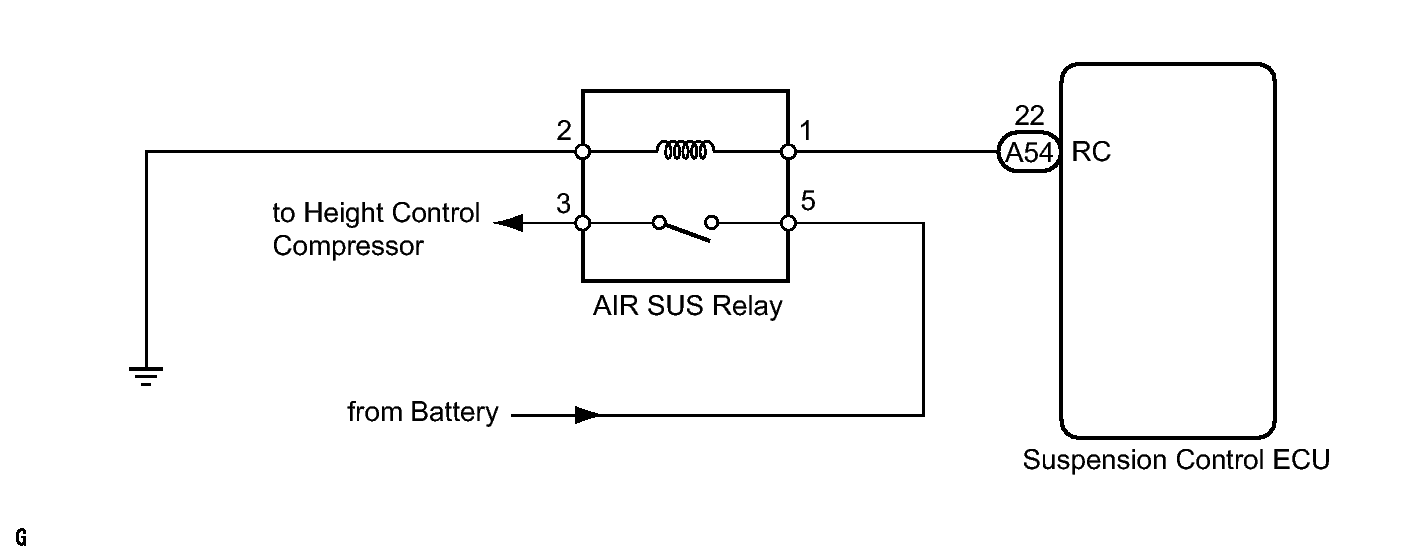

Fig 1: Identifying Compressor Relay Coil Malfunction Wiring Diagram

GTY272956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
