DTC C1748: Low Pressure Tank Valve (TO 08/2009): Wiring Diagram

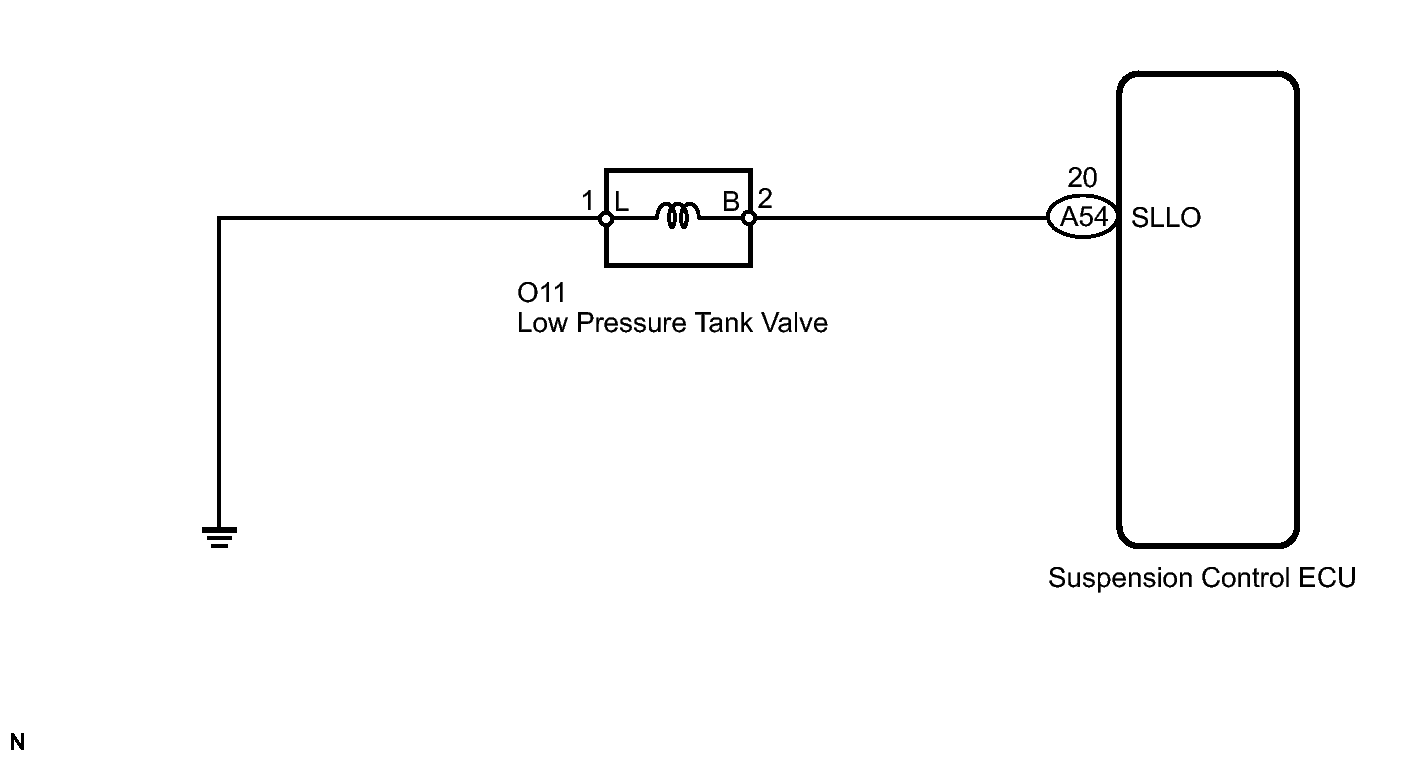

Fig 1: Identifying Low Pressure Tank Valve Wiring Diagram

GTY271800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
