DTC C1745: Exhaust Solenoid Valve Circuit Malfunction (TO 08/2009): Wiring Diagram

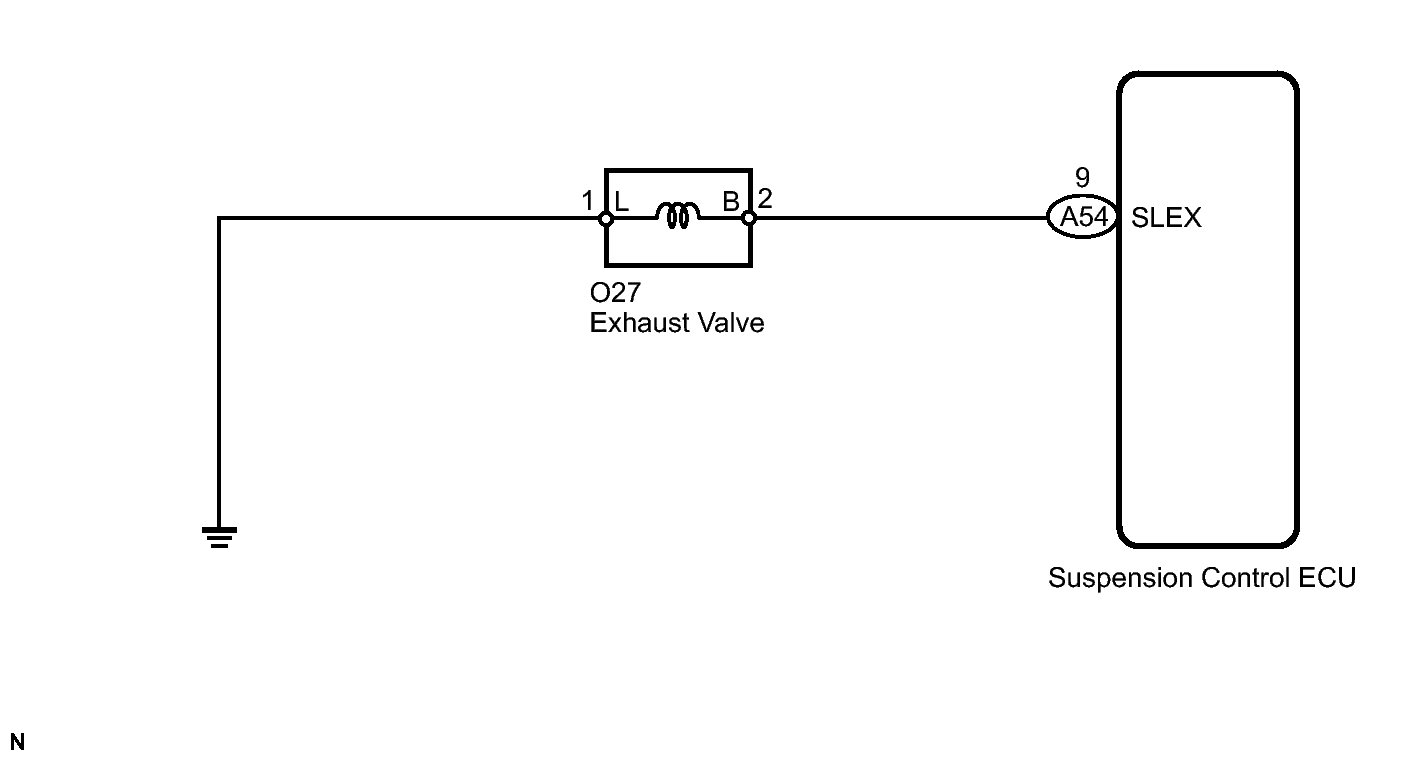

Fig 1: Identifying Exhaust Solenoid Valve Circuit Wiring Diagram

GTY271498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
