DTC C1743: Rear Height Control Solenoid Valve RH Circuit Malfunction; DTC C1744: Rear Height Control Solenoid Valve LH Circuit Malfunction (TO 08/2009): Wiring Diagram

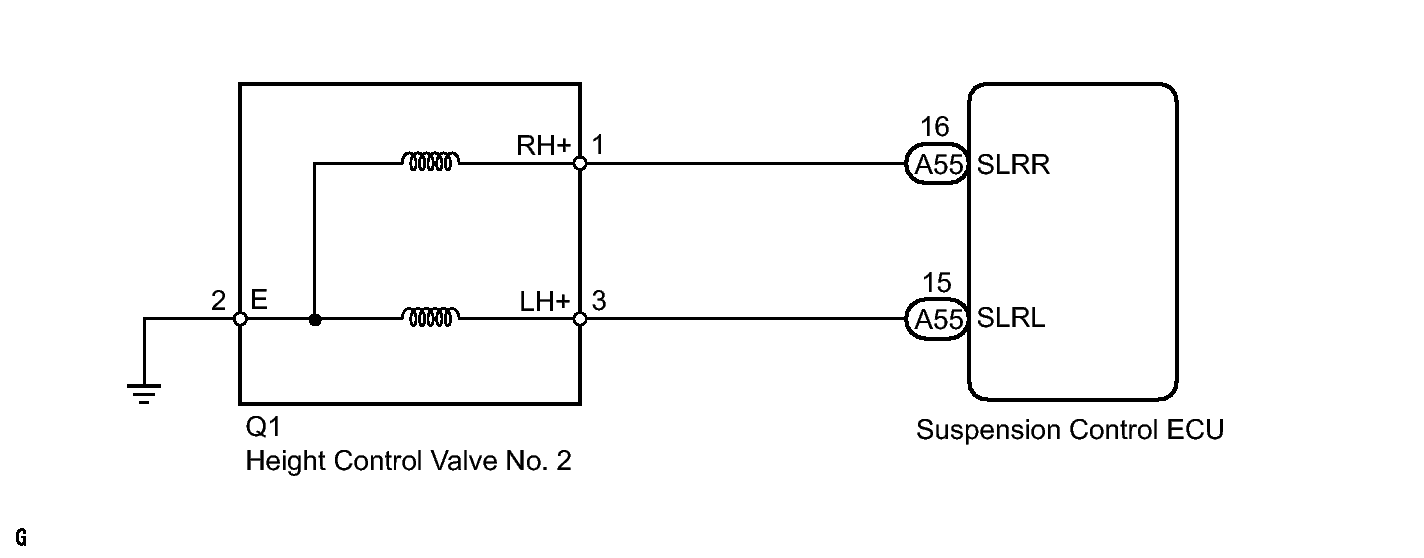

Fig 1: Identifying No. 2 Height Control Valve Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
