DTC C1741: Front Height Control Solenoid Valve RH Circuit Malfunction; DTC C1742: Front Height Control Solenoid Valve LH Circuit Malfunction (TO 08/2009): Wiring Diagram

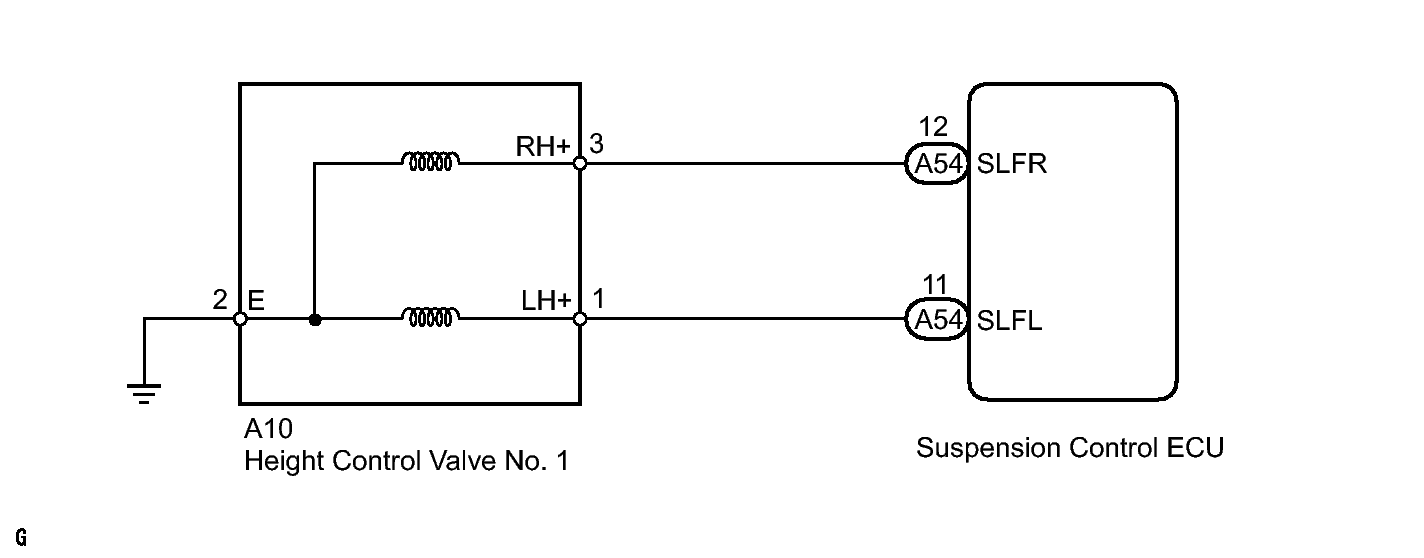

Fig 1: Identifying No. 1 Height Control Valve Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
