INSTALLATION (To 08/2009): Installation

  1. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Check that the engine switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Engage the claw to connect the hood lock control cable to the driver side knee airbag assembly.

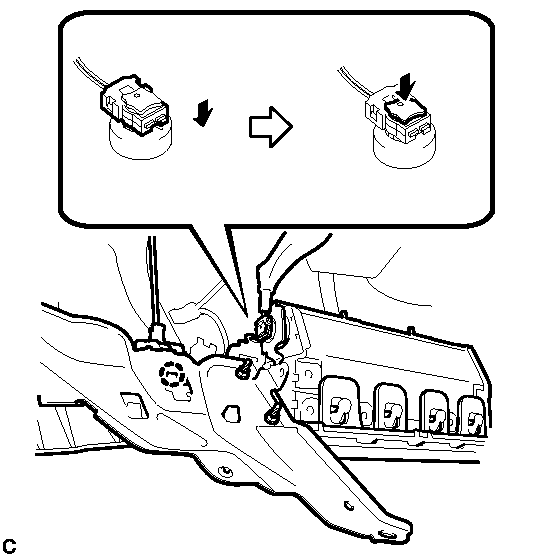

      Fig 1: Engaging Claw To Connect Hood Lock Control Cable To Driver Side Knee Airbag Assembly
      GTY286123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the airbag connector to the driver side knee airbag assembly.
      NOTE:

      When connecting the airbag connector, take care not to damage the airbag wire harness.

    5. Temporarily install the driver side knee airbag assembly with the 2 claws and 2 hooks.
      Fig 2: Disengage Bolts, Claws, Hooks To Seperate Driver Side Knee Airbag Assembly
      GTY285849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the driver side knee airbag assembly with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Confirm that the driver side knee airbag assembly is installed securely without any excessive gaps and is not protruding outward.

  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 36
  3. INSTALL NO. 1 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 37
  4. INSTALL INSTRUMENT PANEL GARNISH LH  . Refer to INSTALLATION - Step 38
  5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 39
  6. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 59
  7. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 60
  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  9. PERFORM DIAGNOSTIC SYSTEM CHECK
    1. Perform a diagnostic system check. Refer to DTC CHECK / CLEAR .
  10. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
  11. INSPECT SUSPENSION CONTROL SYSTEM
    1. Inspect the suspension control system. Refer to TEST MODE PROCEDURE .
