TC and CG Terminal Circuit (To 08/2009): Wiring Diagram

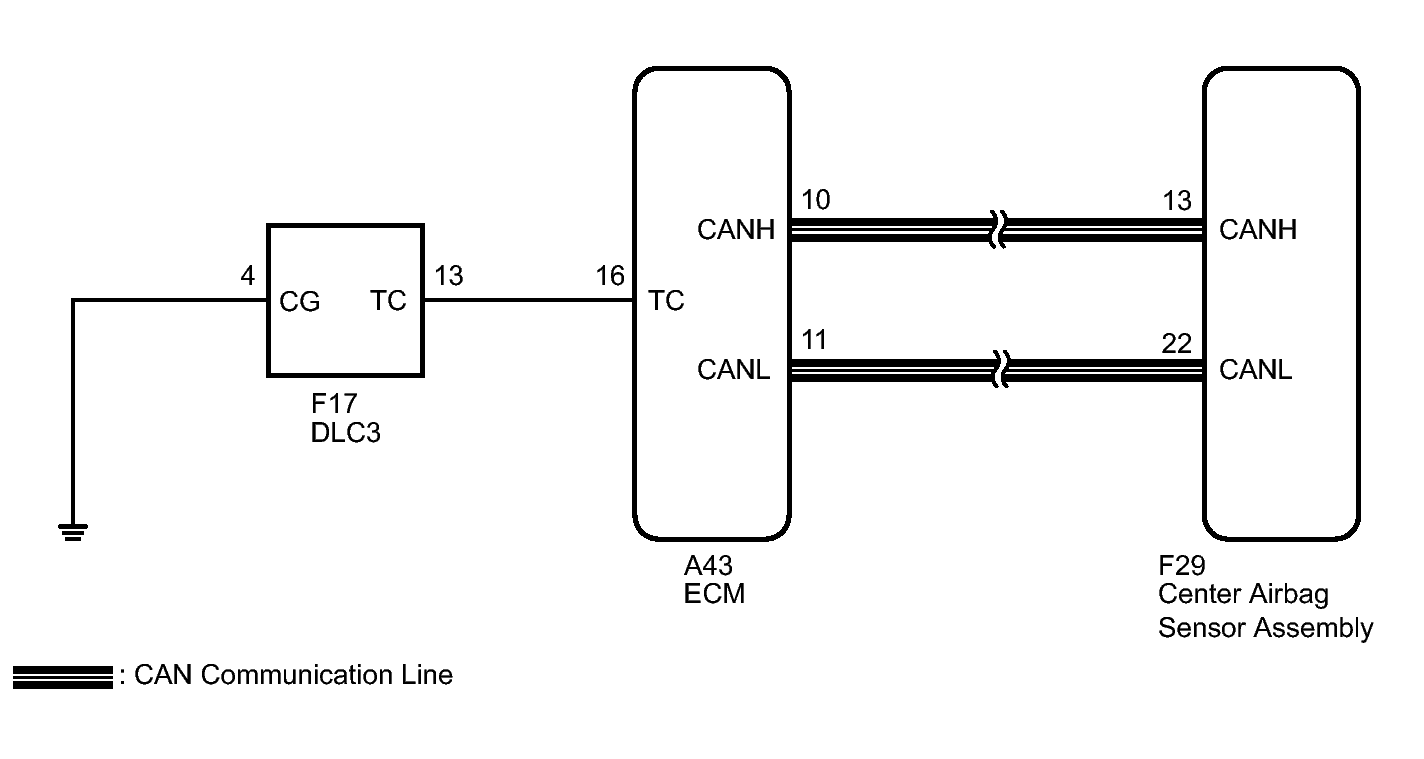

Fig 1: A43 ECM - Wiring Diagram

GTY267262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
