DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction (2010 To 08/2009): Wiring Diagram

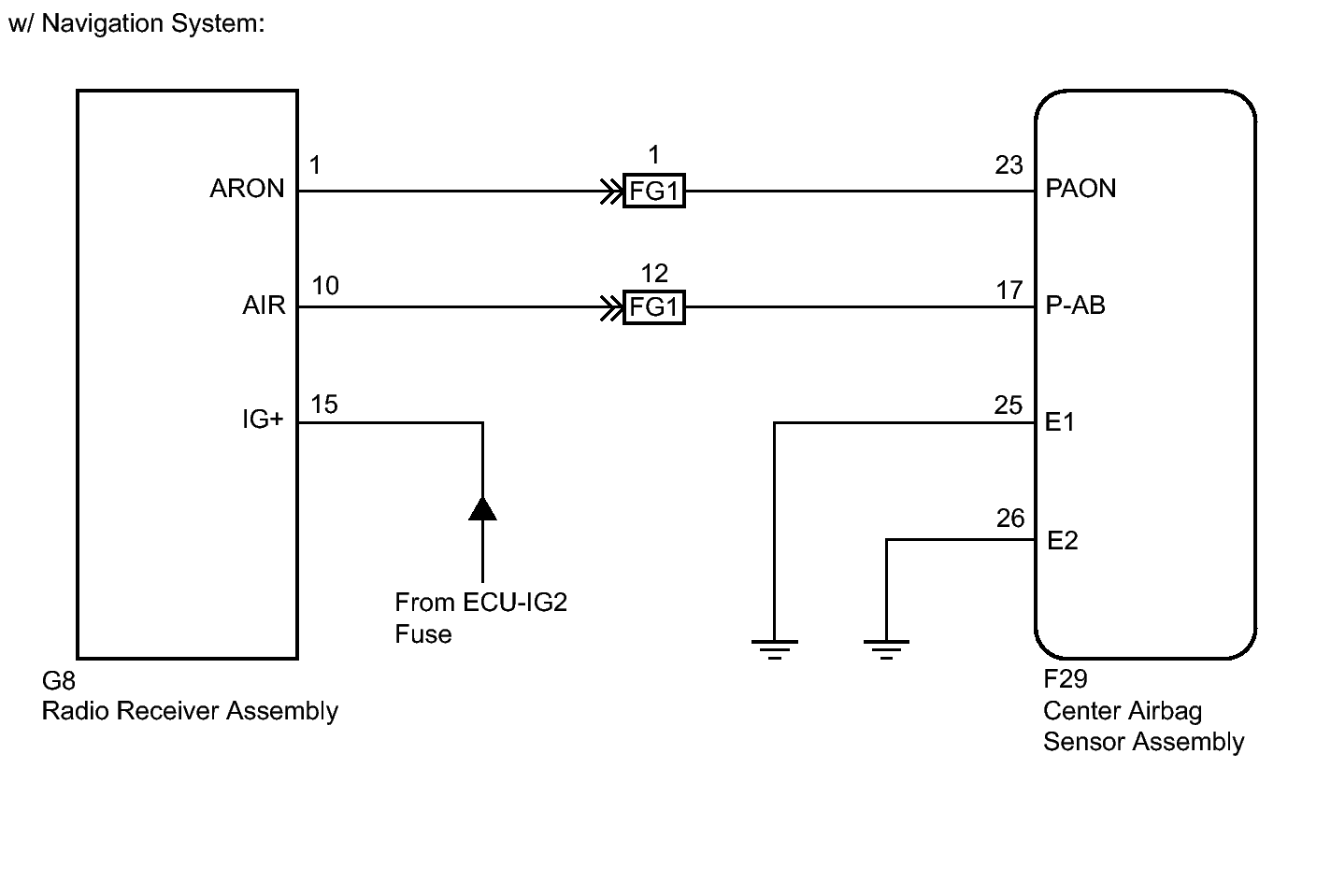

Fig 1: F29 Center Airbag Sensor Assembly - Wiring Diagram (W/ Navigation System)
GTY261277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

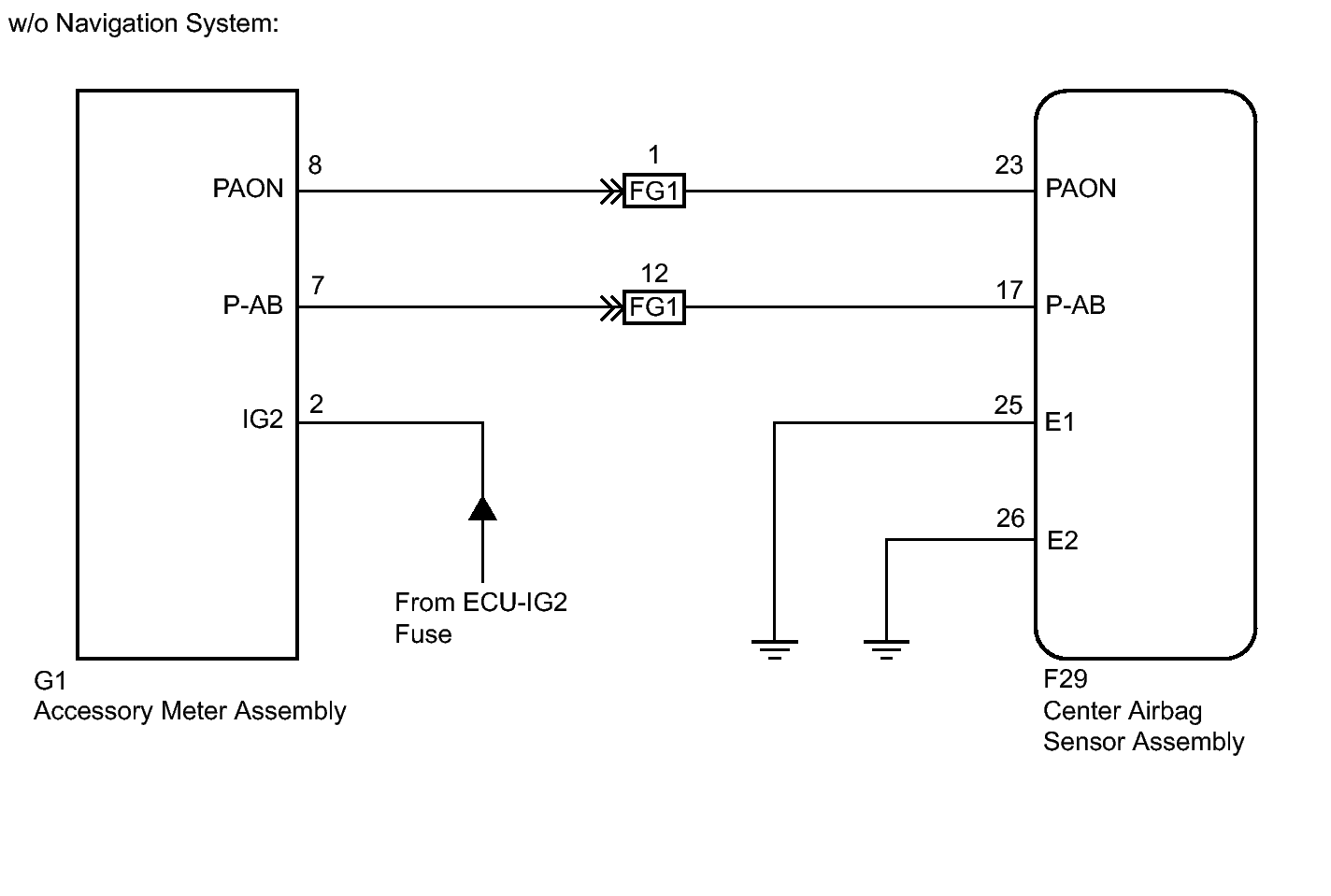

Fig 2: F29 Center Airbag Sensor Assembly - Wiring Diagram (W/O Navigation System)
GTY263406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
