DTC B1620/21: Side Airbag Sensor RH Circuit Malfunction (To 8/2009): Wiring Diagram

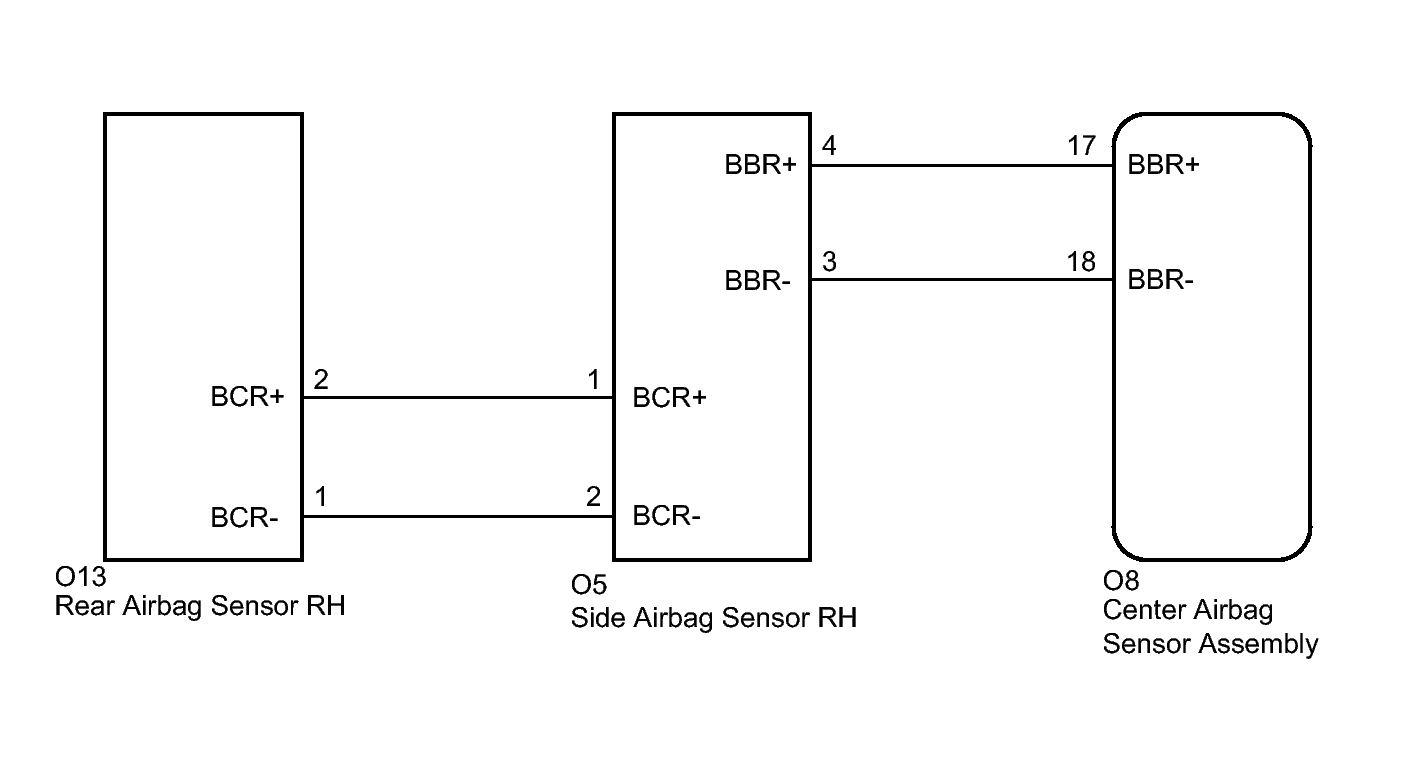

Fig 1: Identifying Side Airbag Sensor RH Circuit Wiring Diagram

GTY263113

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
