Replacement(To 08/2009) : Replacement

1. Remove the transfer drain plug and gasket to drain the transfer oil.
2. Install a new gasket and the transfer drain plug.

   Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

Refer to REMOVAL .

1. Using SST, remove the transfer case front oil seal from the transfer case.
   • SST: 09308-00010

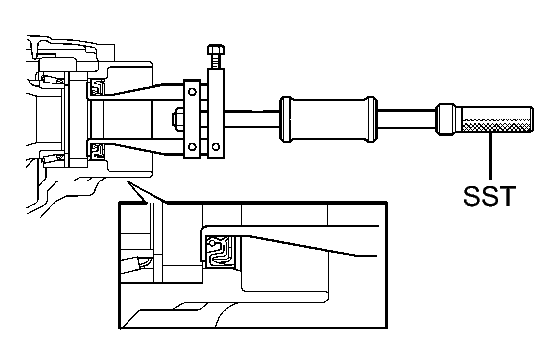

   Fig 1: Removing Transfer Case Front Oil Seal From Transfer Case

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Do not damage the oil seal contact surface on the case.

1. Using SST, drive in a new transfer case front oil seal into the transfer case until it reaches the position shown in the illustration.
   • SST: 09950-60010
     1. 09951-00350
     2. 09951-00580
     3. 09952-06010
   • SST: 09950-70010
     1. 09951-07150

   Drive in depth

   33.5 to 34.5 mm (1.32 to 1.36 in.)

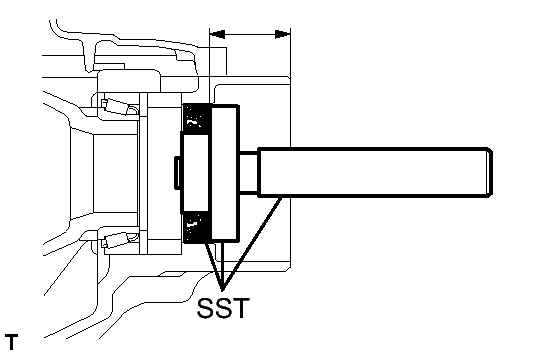

   Fig 2: Installing Transfer Case Rear Oil Seal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Do not tilt the oil seal during installation.

2. Apply a small amount of MP grease to the lip of the oil seal.

Refer to INSTALLATION .
