REMOVAL (To 08/2009): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

If automatic transmission parts are replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary. Refer to PRECAUTION .

PRECAUTION (w/ Navigation System for HDD)
NOTE:
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.
REMOVE ENGINE ROOM SIDE COVER . Refer to REMOVAL - Step 1
REMOVE ENGINE ROOM SIDE COVER LH . Refer to REMOVAL - Step 2
REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 3
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE INLET NO. 2 AIR CLEANER . Refer to REMOVAL - Step 35
REMOVE INLET NO. 1 AIR CLEANER . Refer to REMOVAL - Step 36
REMOVE BATTERY . Refer to REMOVAL - Step 37
REMOVE AIR CLEANER BRACKET
1. Remove the 3 bolts and air cleaner bracket.

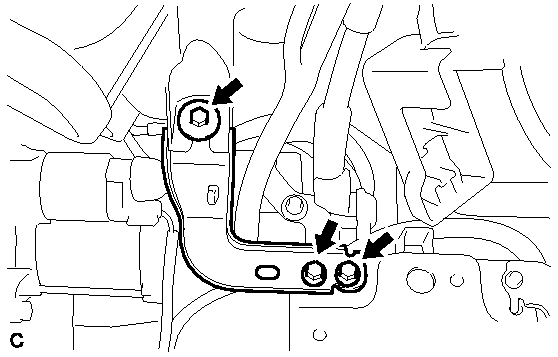

  Fig 1: Identifying Air Cleaner Bracket & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TCM
1. Turn the lock lever and disconnect the connector from the TCM.

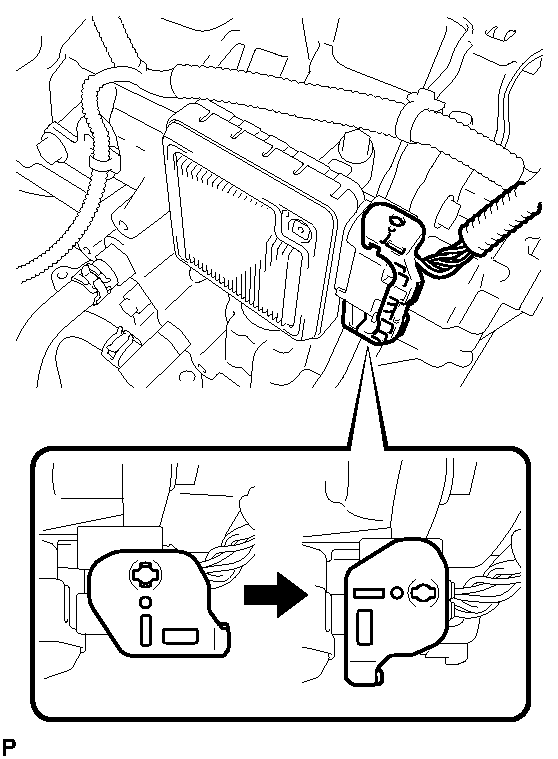

  Fig 2: Identifying Lock Lever & Connector From TCM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and TCM from the transaxle.

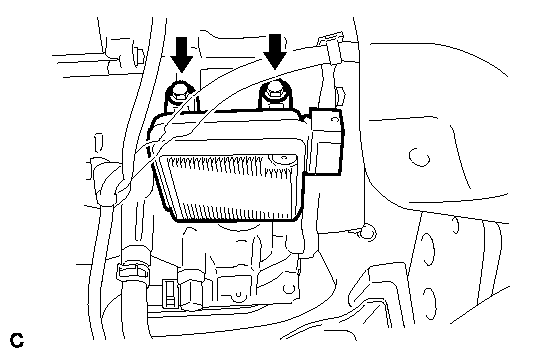

  Fig 3: Identifying TCM Bolts From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
