REMOVAL (To 8/2009): Removal

  1. PRECAUTION (w/ Air Suspension)
    NOTE:

    Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .

  2. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold. Refer to REMOVAL .
  3. REMOVE KNOCK CONTROL SENSOR
    1. Disconnect the 2 knock control sensor connectors.

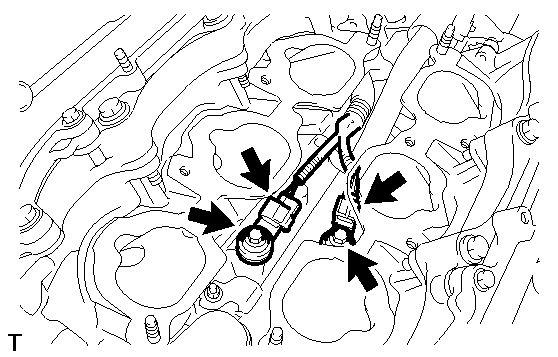

      Fig 1: Locating Knock Control Sensor Connectors And Bolts
      GTY288033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 knock control sensors.
