REMOVAL (To 8/2009): Removal

  1. PRECAUTION (w/ Air Suspension)
    NOTE:

    Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .

  2. REMOVE EXHAUST MANIFOLD
    1. Remove the exhaust manifold. Refer to REMOVAL .
  3. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
    1. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.

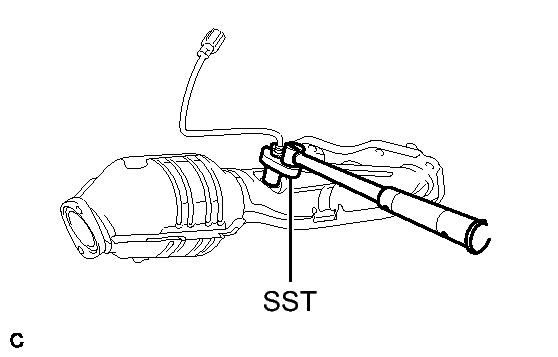

      Fig 1: Removing Air Fuel Ratio Sensor Using SST
      GTY269016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
  4. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
    1. Use the same procedure for bank 1 and bank 2.
      • SST: 09224-00010
