REMOVAL (To 08/2009): Removal

  1. PRECAUTION (w/ Air Suspension)
    NOTE:

    Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .

  2. REMOVE FRONT WHEEL RH
  3. REMOVE FRONT FENDER LINER RH
  4. REMOVE FRONT FENDER APRON SEAL RH  See step  17
  5. REMOVE V-RIBBED BELT
    1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner counterclockwise, and remove the V-ribbed belt from the V-ribbed belt tensioner.

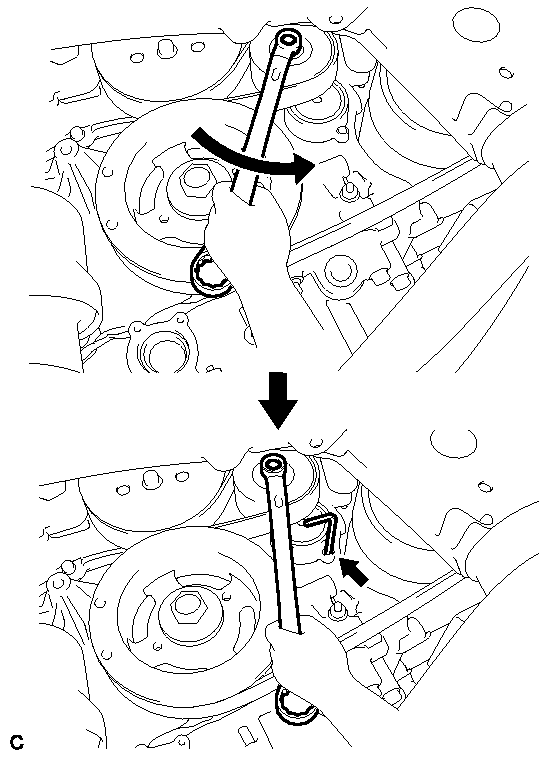

      Fig 1: Turning V-Ribbed Belt Tensioner Counterclockwise
      GTY285903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While turning the V-ribbed belt tensioner counterclockwise, align with its holes, and then insert a 5 mm bi-hexagon wrench into the holes to fix the V-ribbed belt tensioner.
