INSTALLATION (To 08/2009): Installation

1. Install the V-ribbed belt.

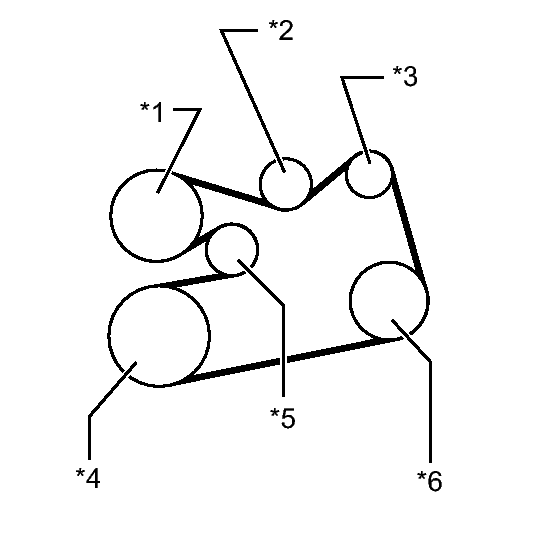

   Fig 1: V-Ribbed Belt Routing (2010 To 08/2009)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Water Pump
   *2	Idler
   *3	Generator
   *4	Crankshaft
   *5	V-ribbed belt Tensioner
   *6	A/C Compressor

2. Turn the V-ribbed belt tensioner counterclockwise and remove a 5 mm bi-hexagon wrench.

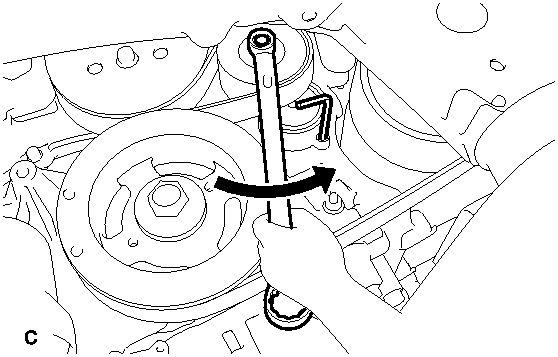

   Fig 2: Turning V-Ribbed Belt Tensioner Counterclockwise

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. After installing the V-ribbed belt, check that it fits properly in the ribbed grooves. Confirm that the belt has not slipped out of the grooves on the bottom of the crank pulley by hand.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
