Turn Signal and Hazard Warning Light

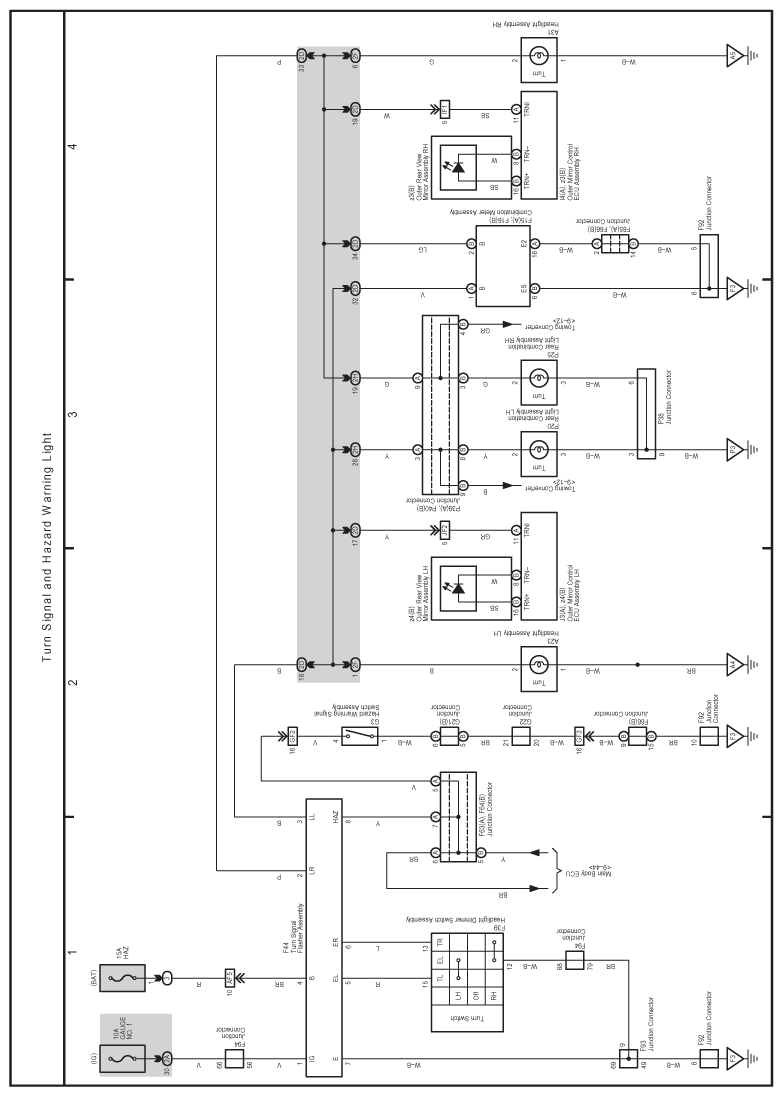

Fig 1: Turn Signal And Warning Light Electrical Wiring Diagram
G07574127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
