RX 350 FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Sliding Roof
Sliding Roof

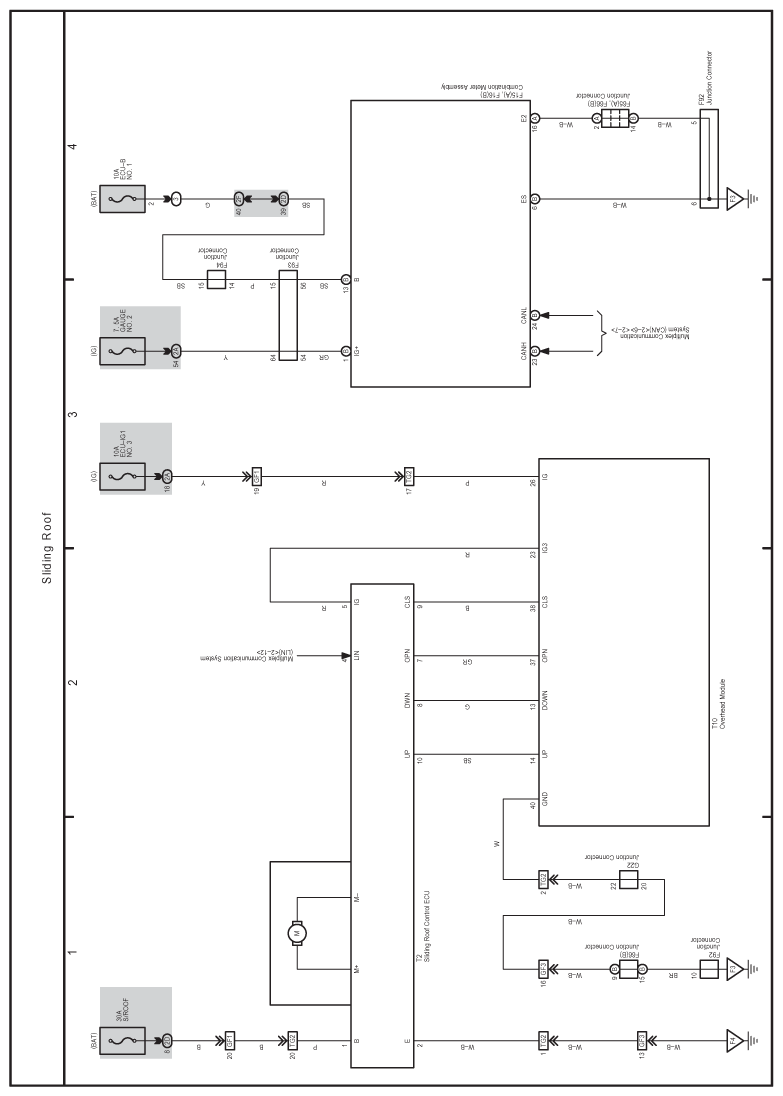

Fig 1: Sliding Roof Electrical Wiring Diagram
