Power Back Door

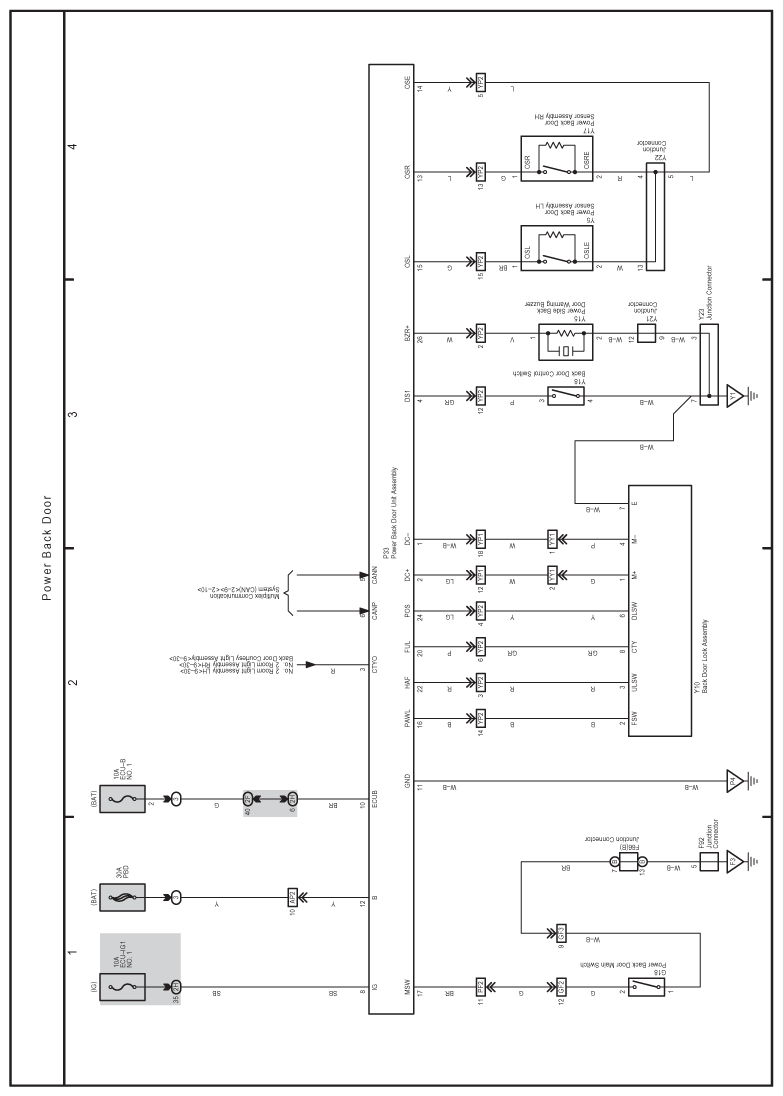

Fig 1: Power Back Door Electrical Wiring Diagram

G07574132

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
