Parking Assist (Intuitive Parking Assist w/o Side Monitor)

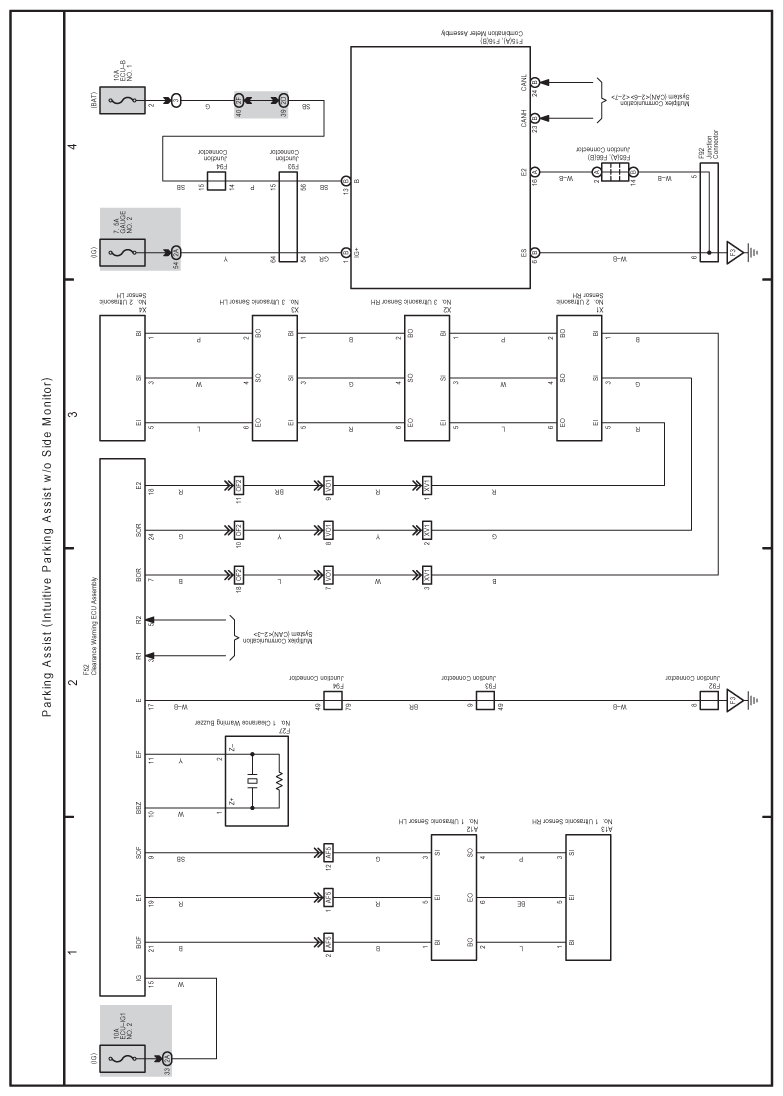

Fig 1: Parking Assist (Intuitive Parking Assist W/O Side Monitor) Electrical Wiring Diagram

G07574166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
