Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor and Intuitive Parking Assist)

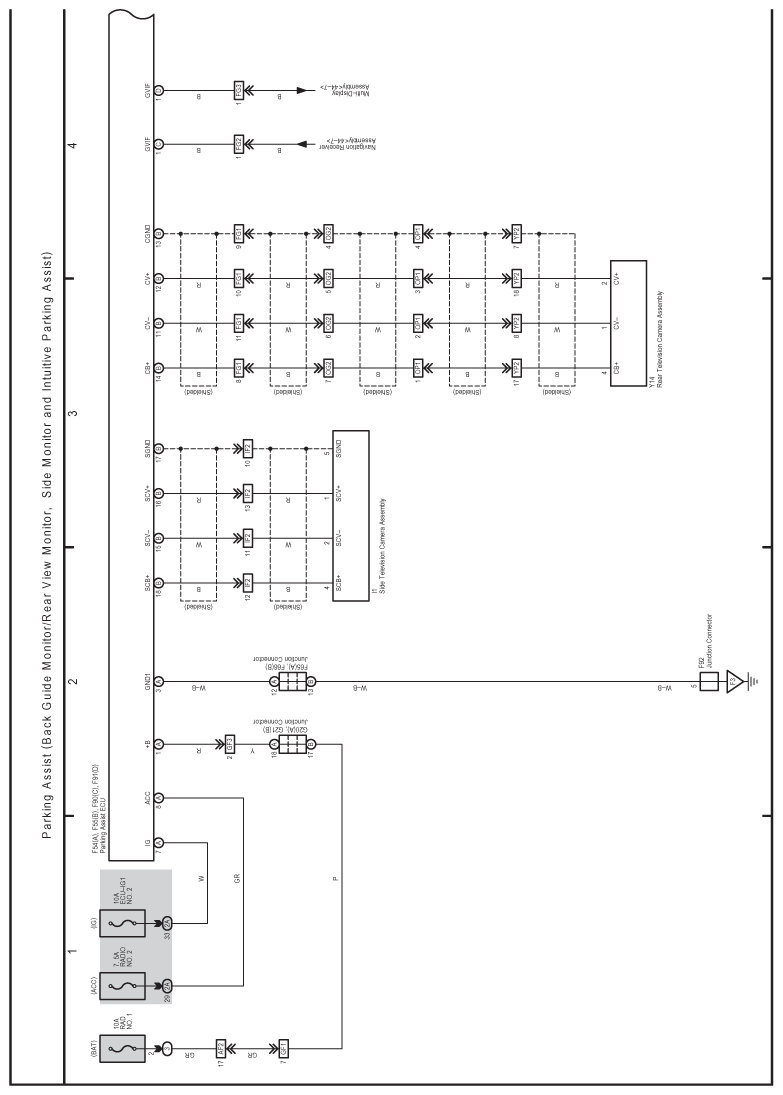

Fig 1: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) Electrical Wiring Diagram (1 Of 2)
G07574164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

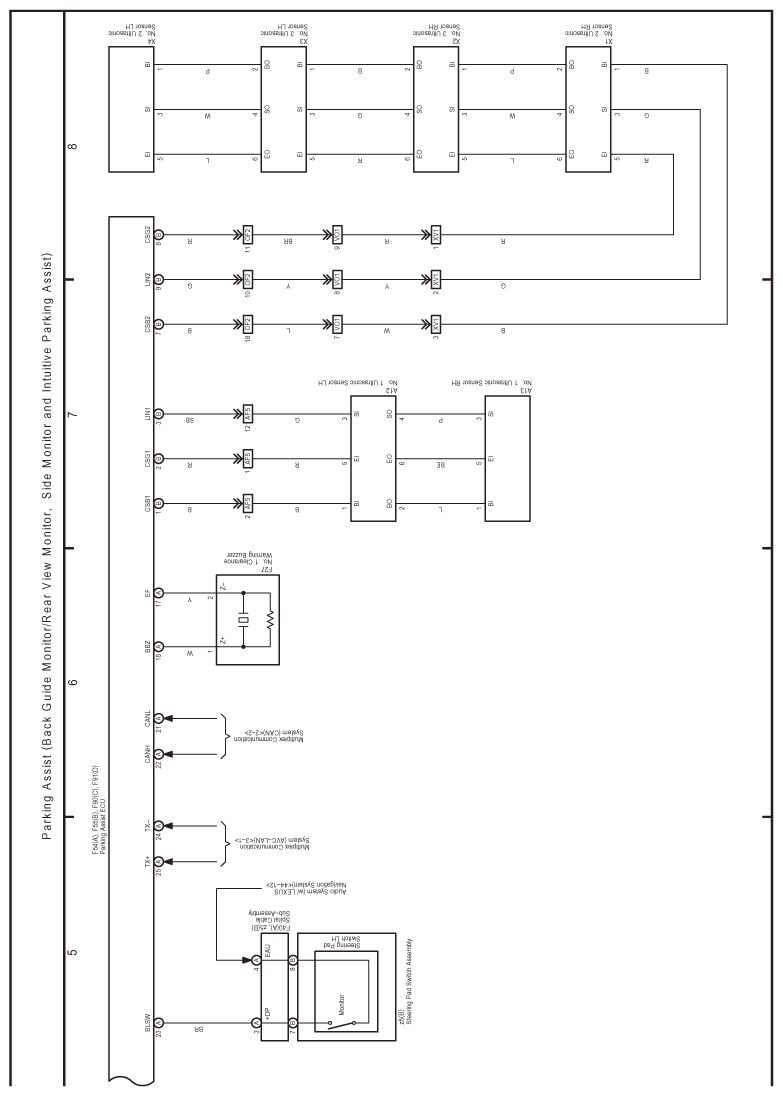

Fig 2: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) Electrical Wiring Diagram (2 Of 2)
G07574165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
