Multiplex Communication System (AVC-LAN)

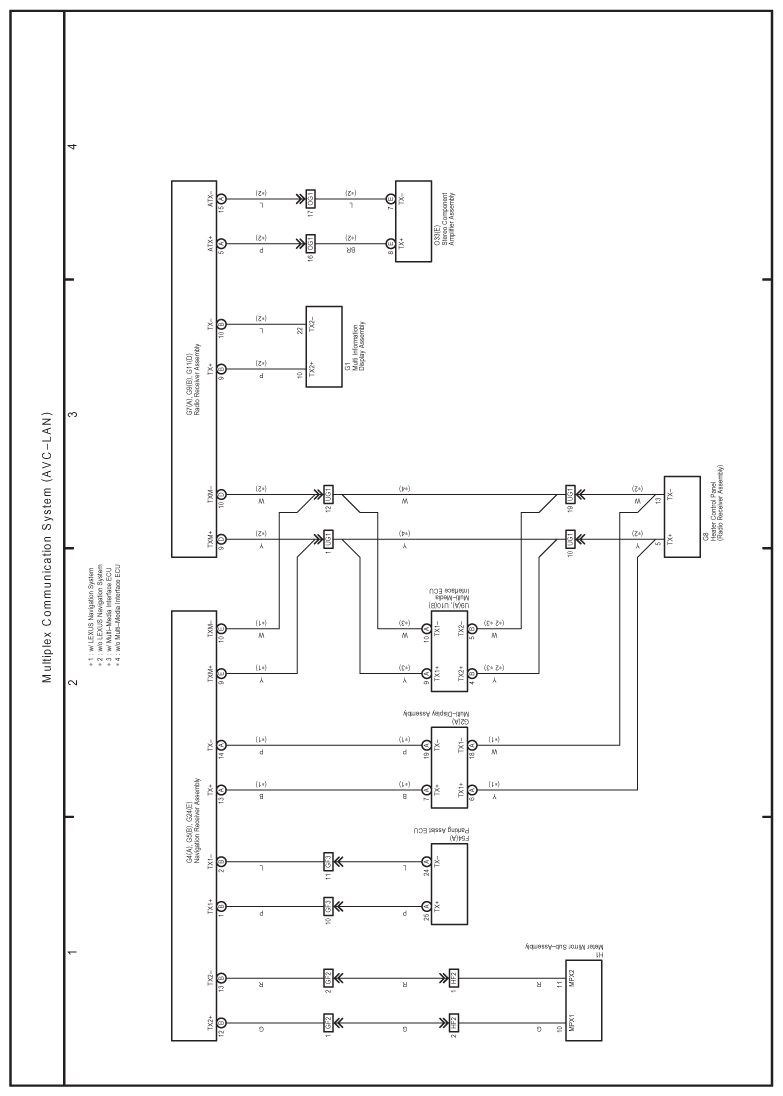

Fig 1: Multiplex Communication System (AVC LAN) Electrical Wiring Diagram

G07574096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
