Overall Electrical Wiring Diagram
>>
LEXUS ENFORM, Safety Connect
LEXUS ENFORM, Safety Connect

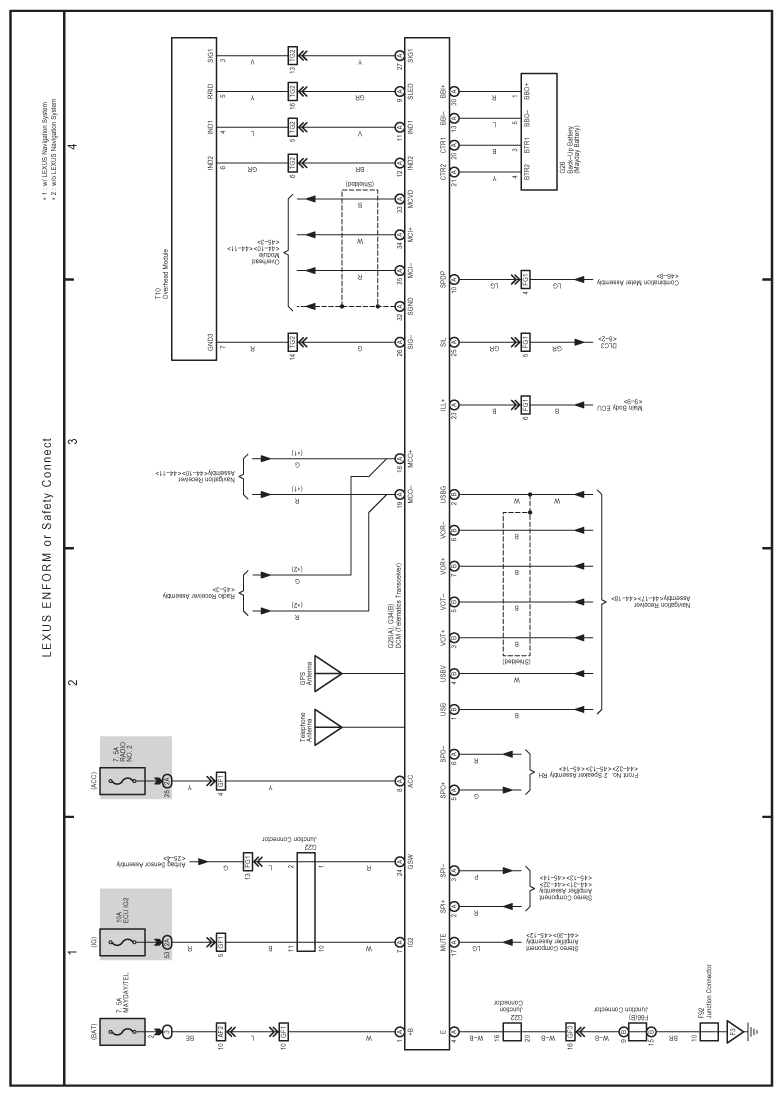

Fig 1: Lexus Enform/Safety Connect Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
