Front Window Deicer, Rear Window Defogger

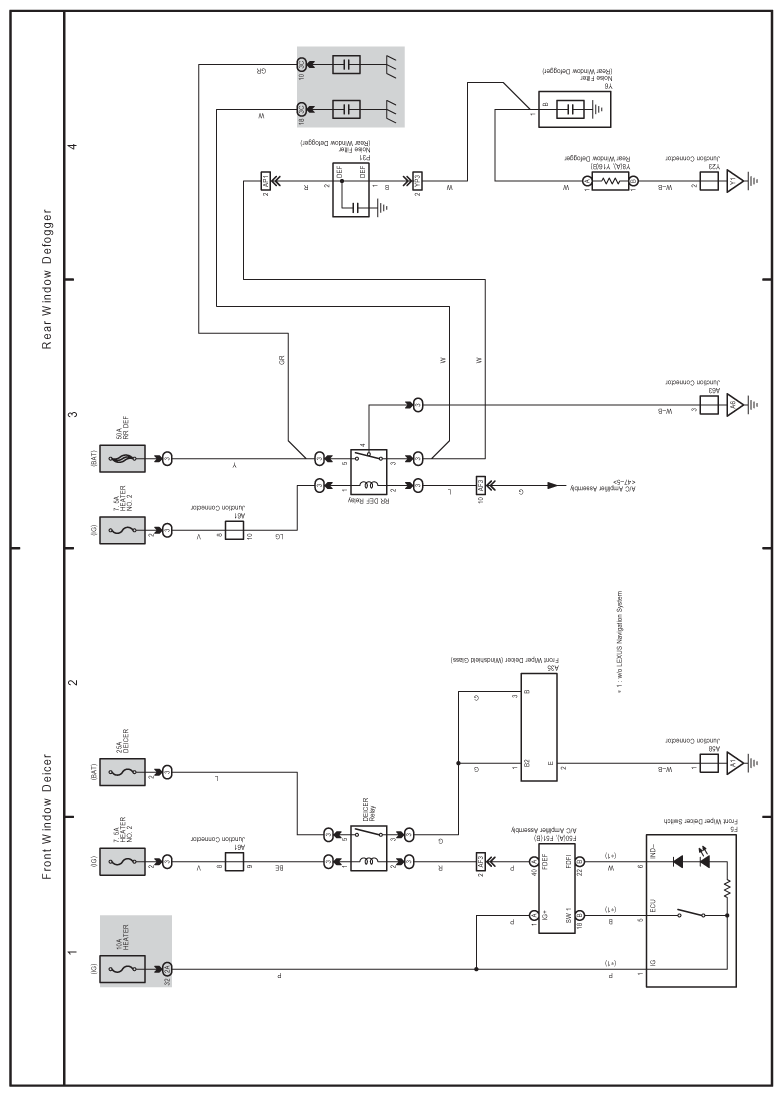

Fig 1: Rear Window Defogger Electrical Wiring Diagram

G07574152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
