Electric Tension Reducer, Fuel Lid Opener

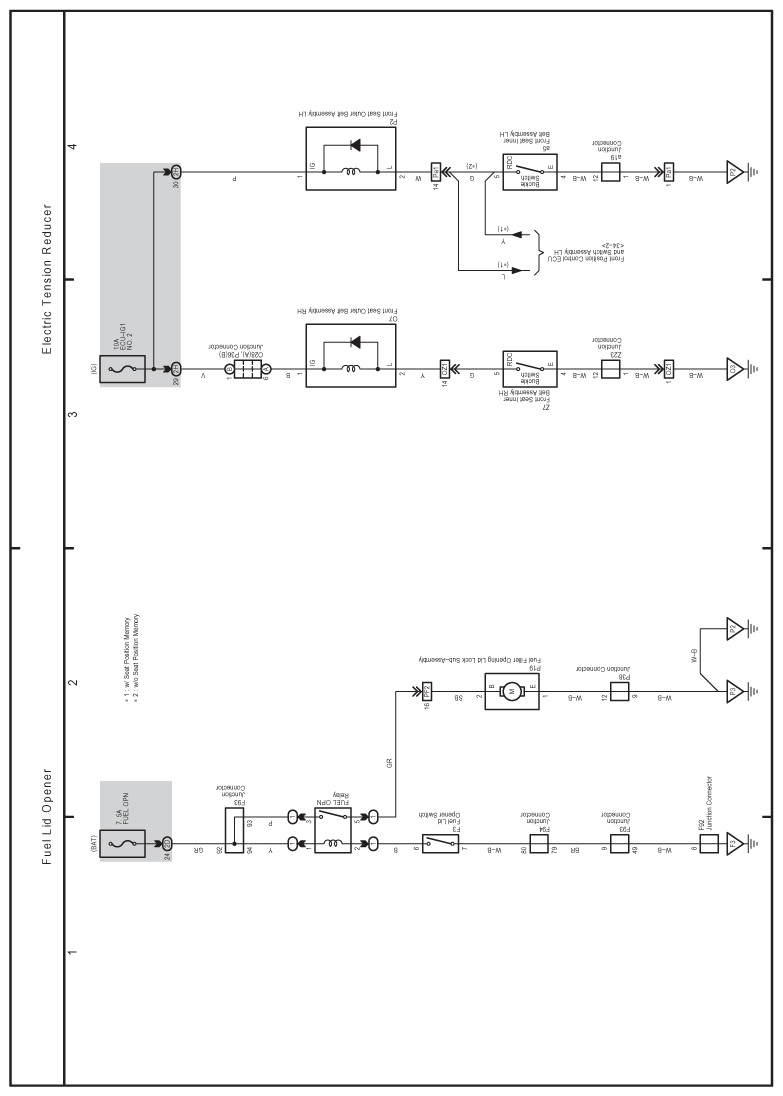

Fig 1: Engine Tensions Reducer Electrical Wiring Diagram

G07574126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
