Overall Electrical Wiring Diagram: EPS

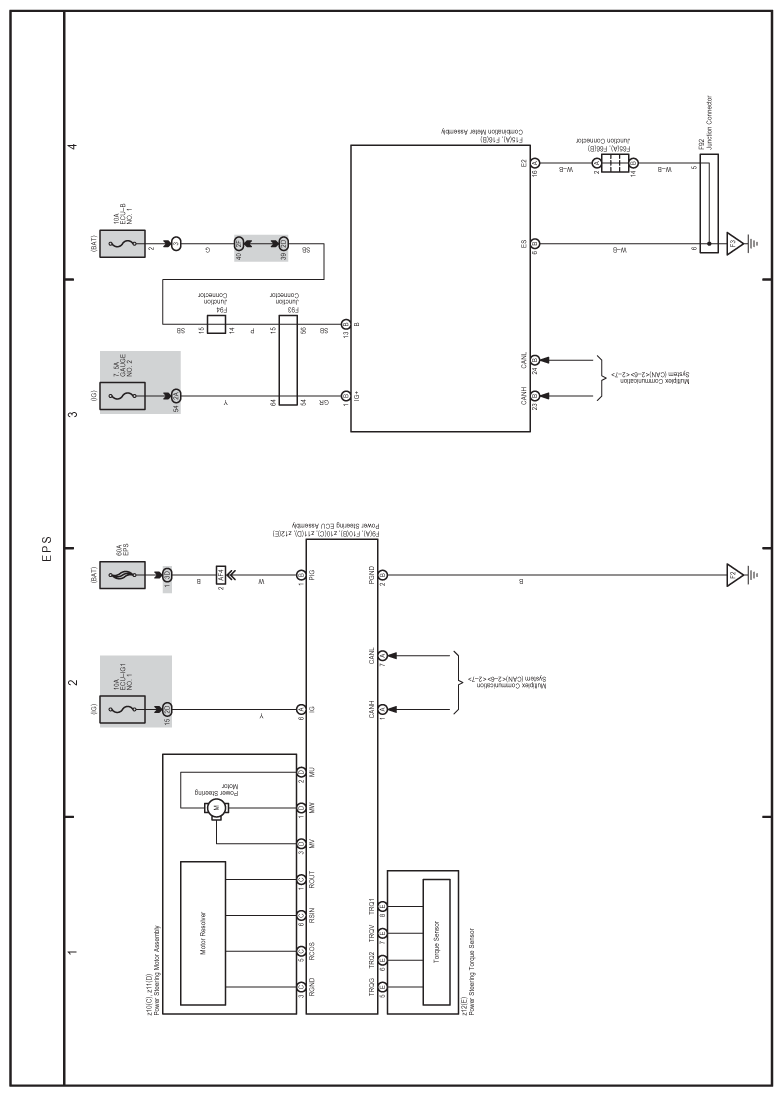

Fig 1: EPS Electrical Wiring Diagram

G07574138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
