Climate Control Seat

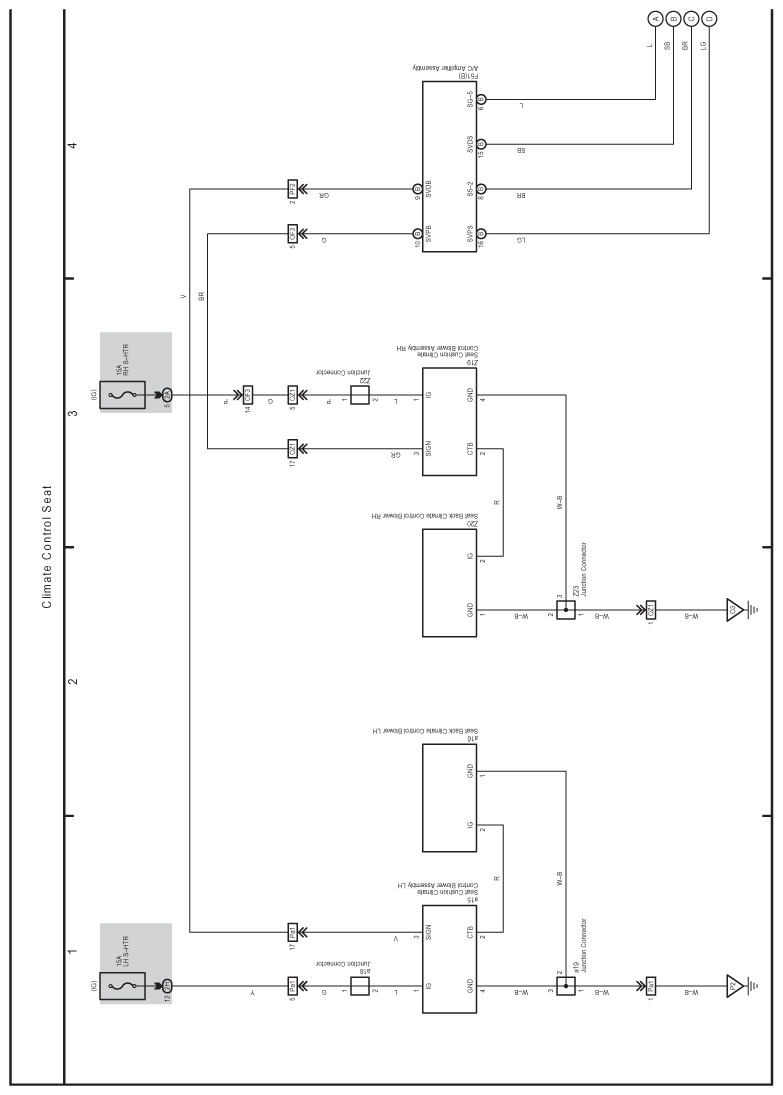

Fig 1: Climate Control Seat Electrical Wiring Diagram (1 Of 2)
G07574158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

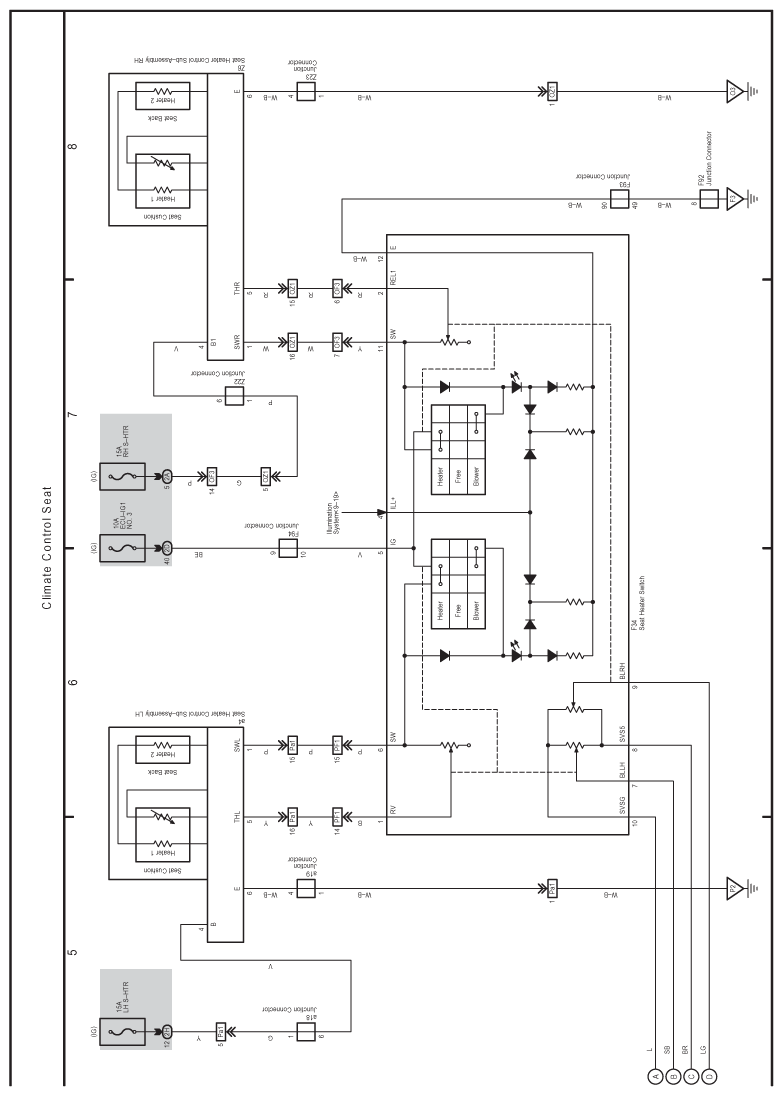

Fig 2: Climate Control Seat Electrical Wiring Diagram (2 Of 2)
G07574159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
