Back-Up Light, Horn

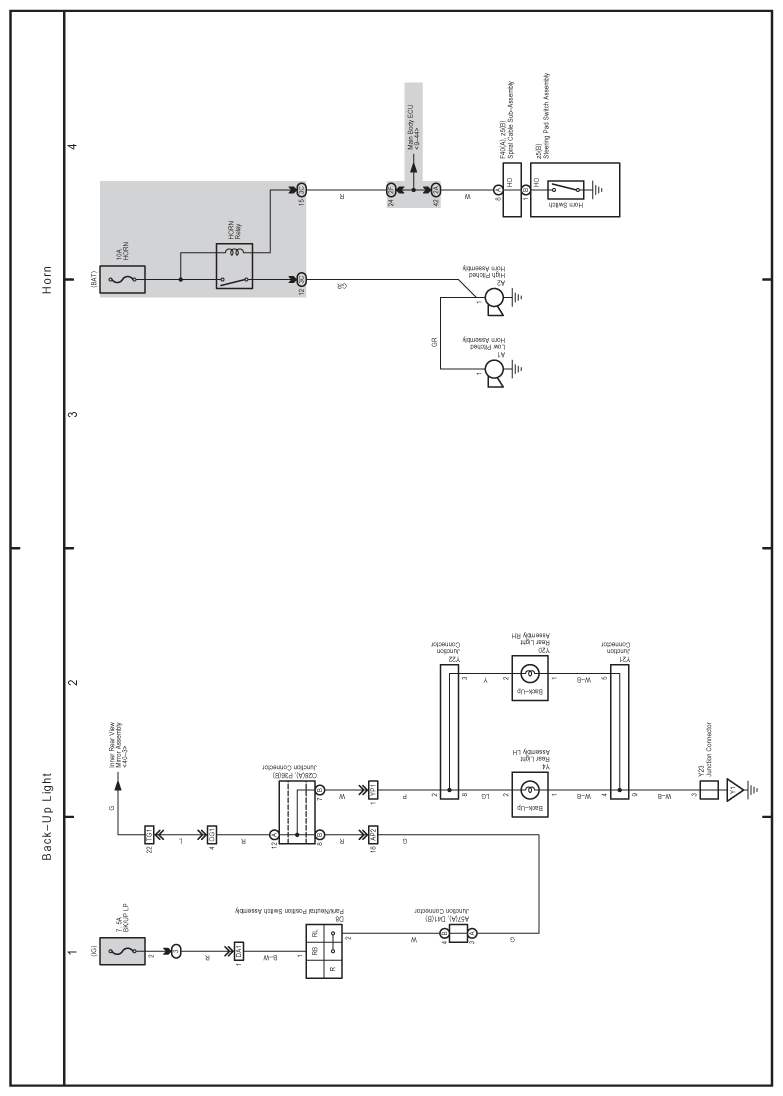

Fig 1: Horn Electrical Wiring Diagram

G07574129

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
