Automatic Light Control, Back Door Opener (w/o Power Back Door), Door Lock Control, Front Fog Light, Headlight, Illumination, Interior Light, Light Auto Turn Off System, Remote Engine Starter System, Taillight, Theft Deterrent, Trailer Towing

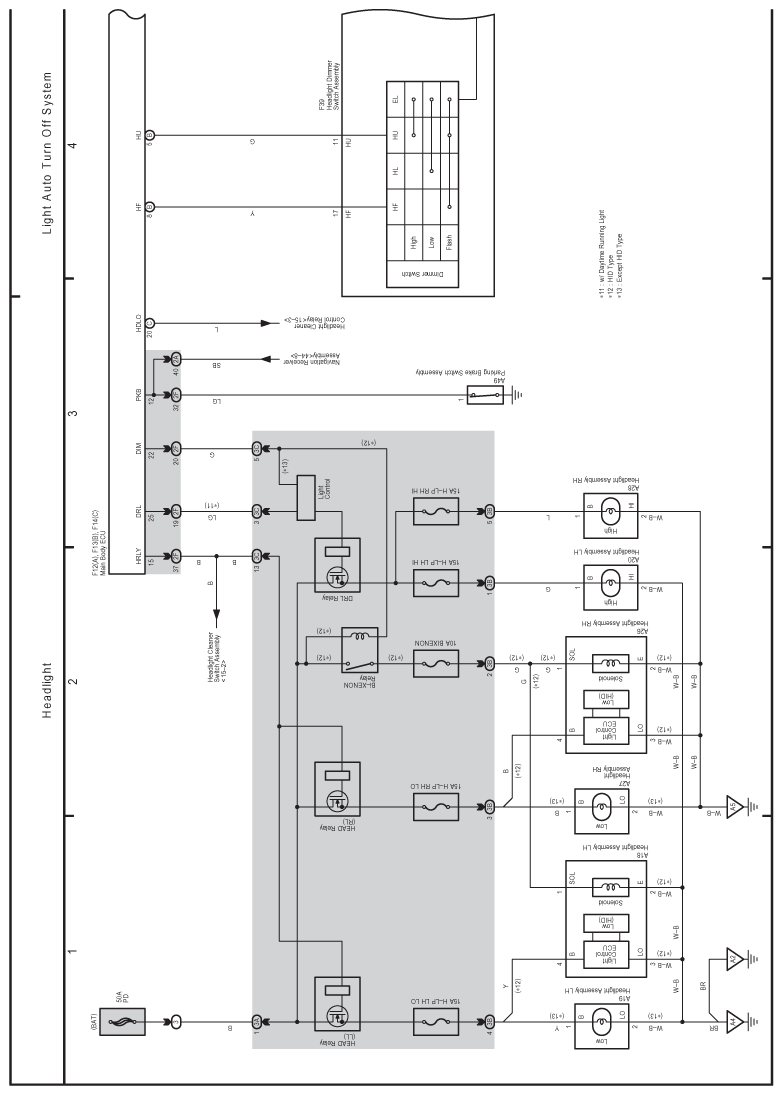

Fig 1: Headlight Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

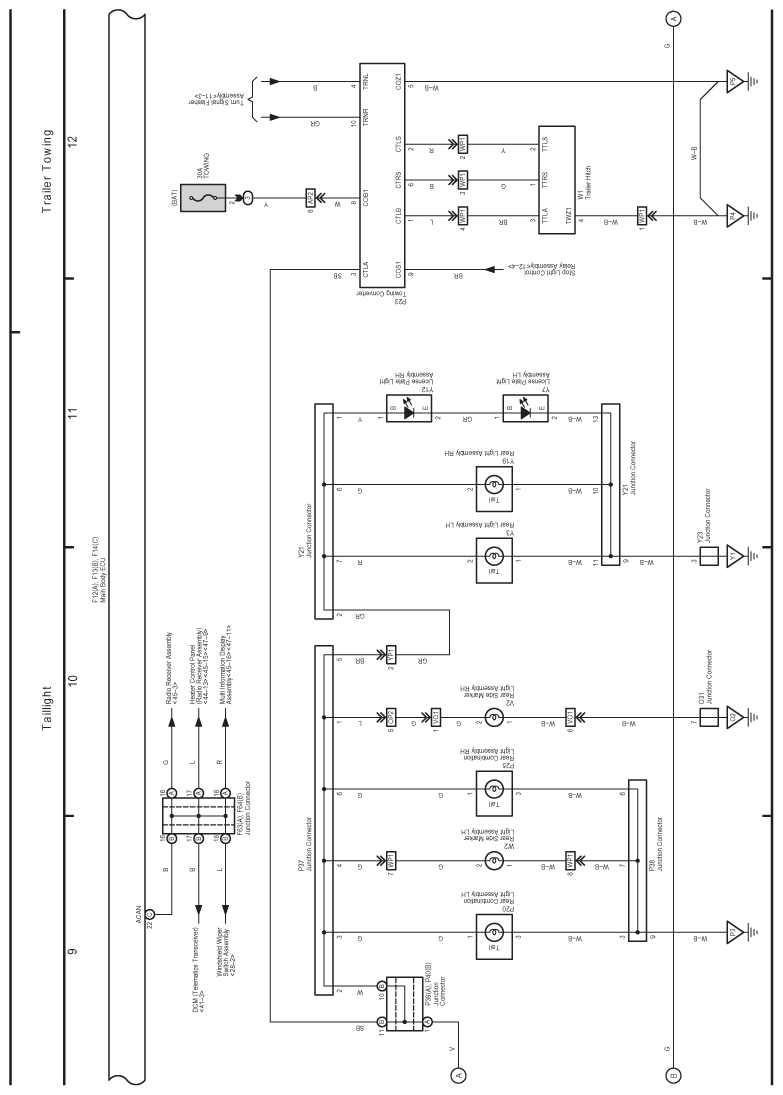

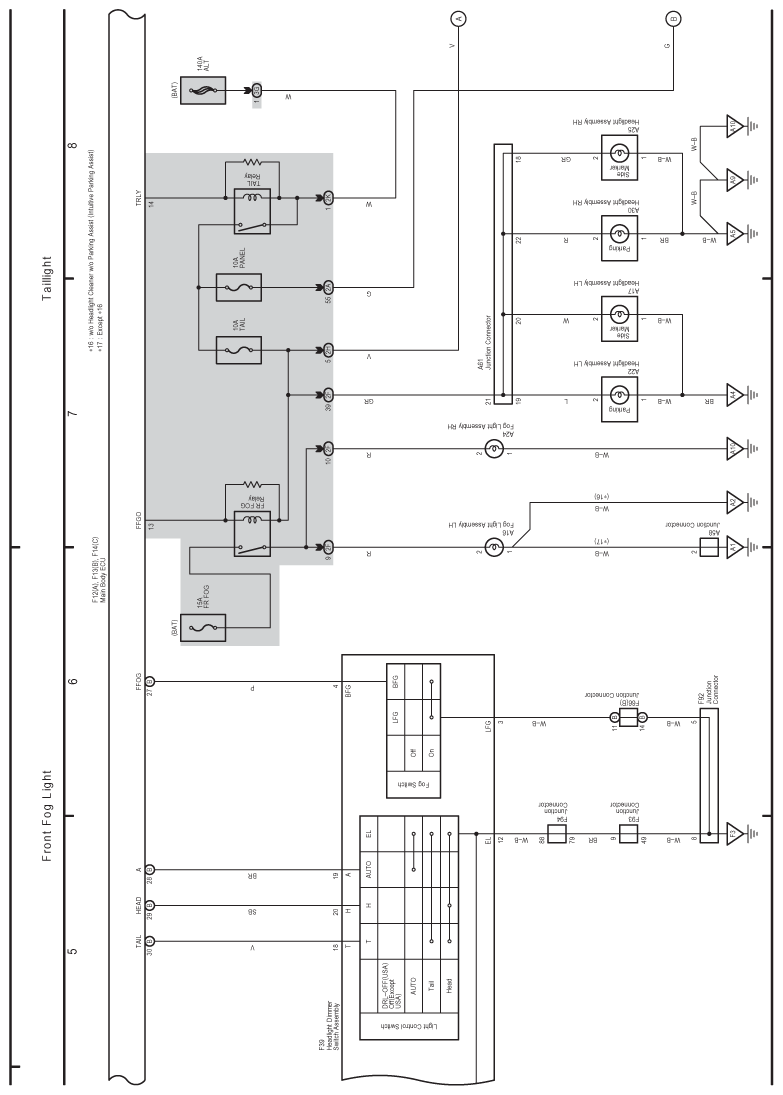

Fig 2: Tailight Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Trailer Towing Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

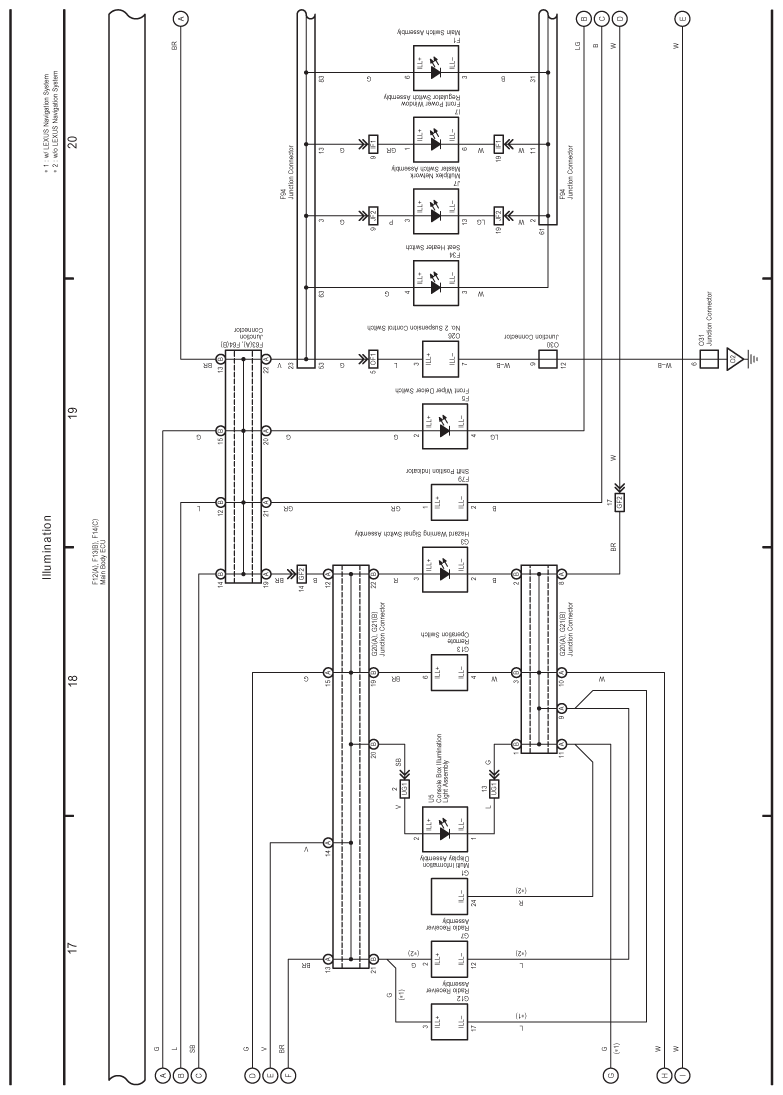

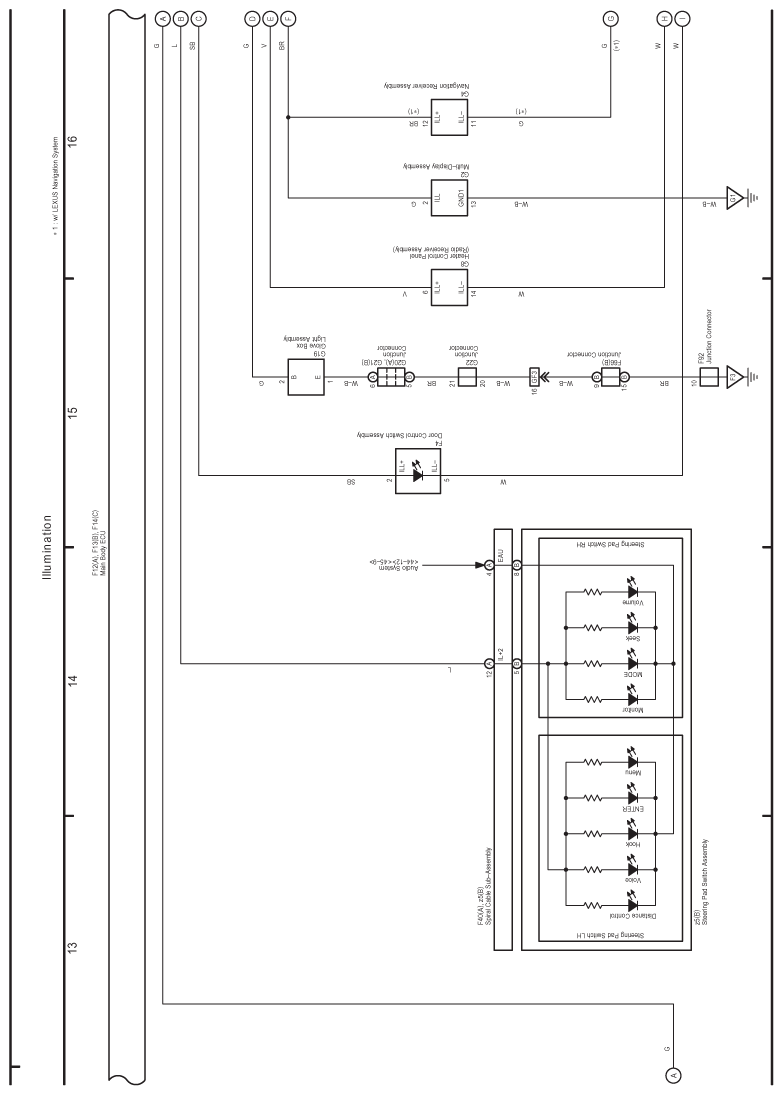

Fig 4: Illumination Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Illumination Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

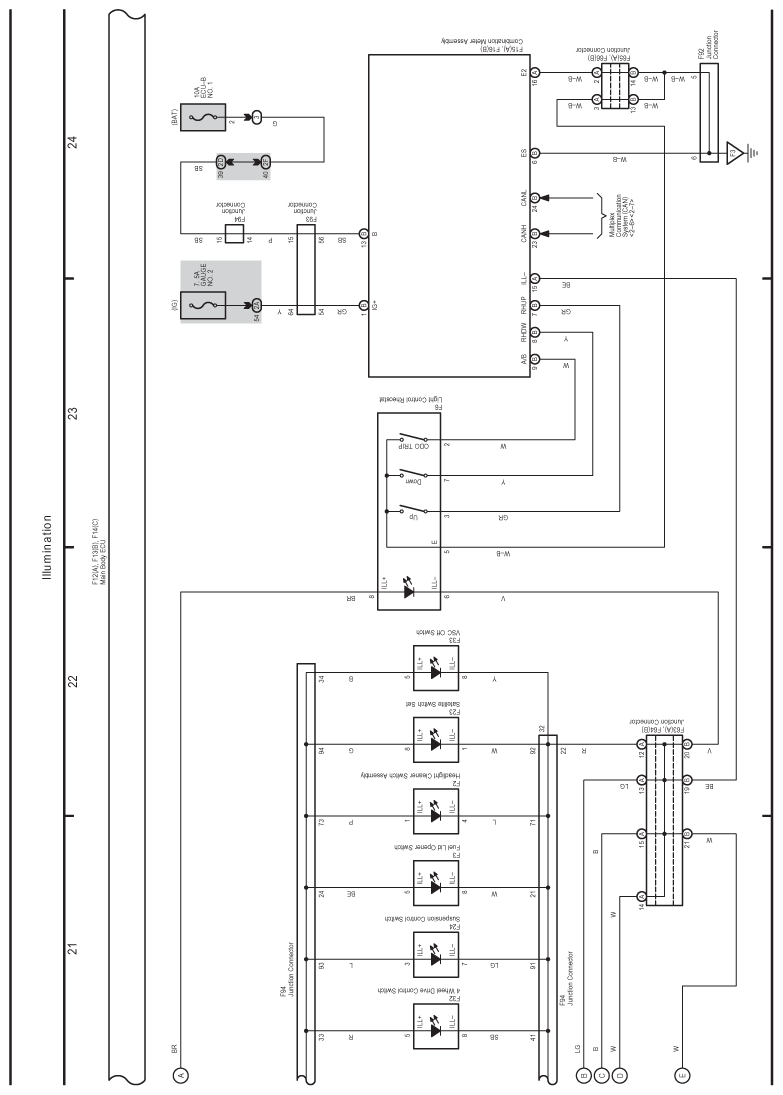

Fig 6: Illumination Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

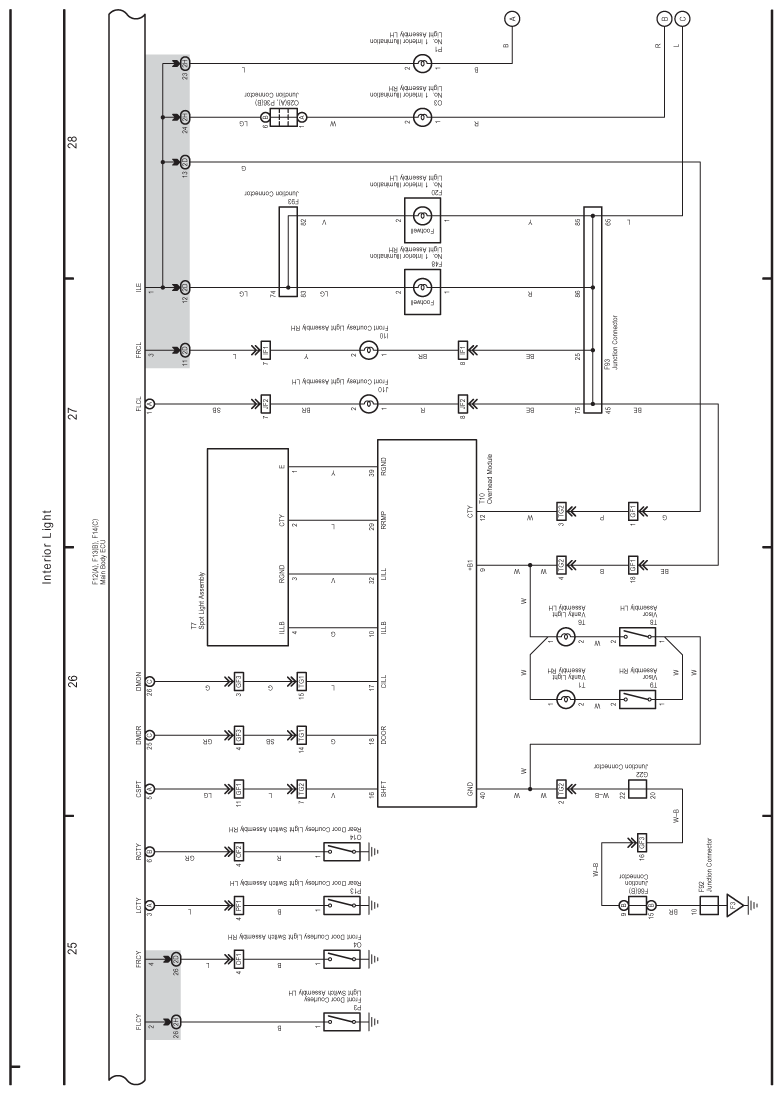

Fig 7: Interior Light Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

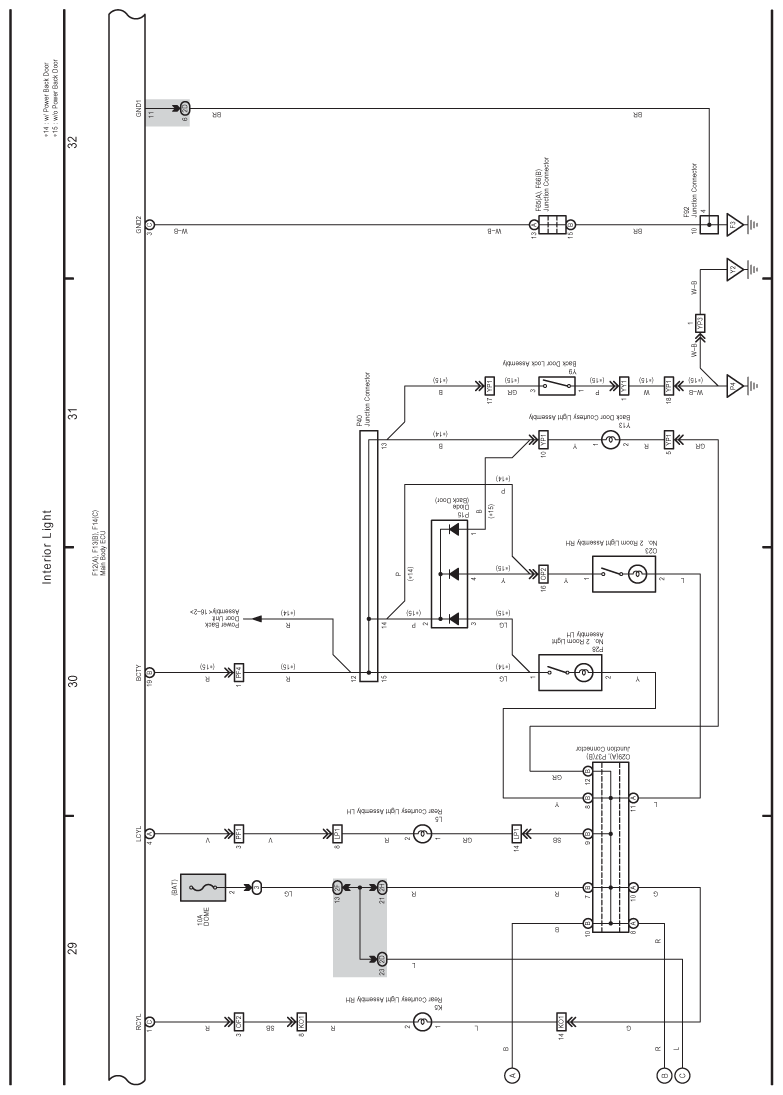

Fig 8: Interior Light Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

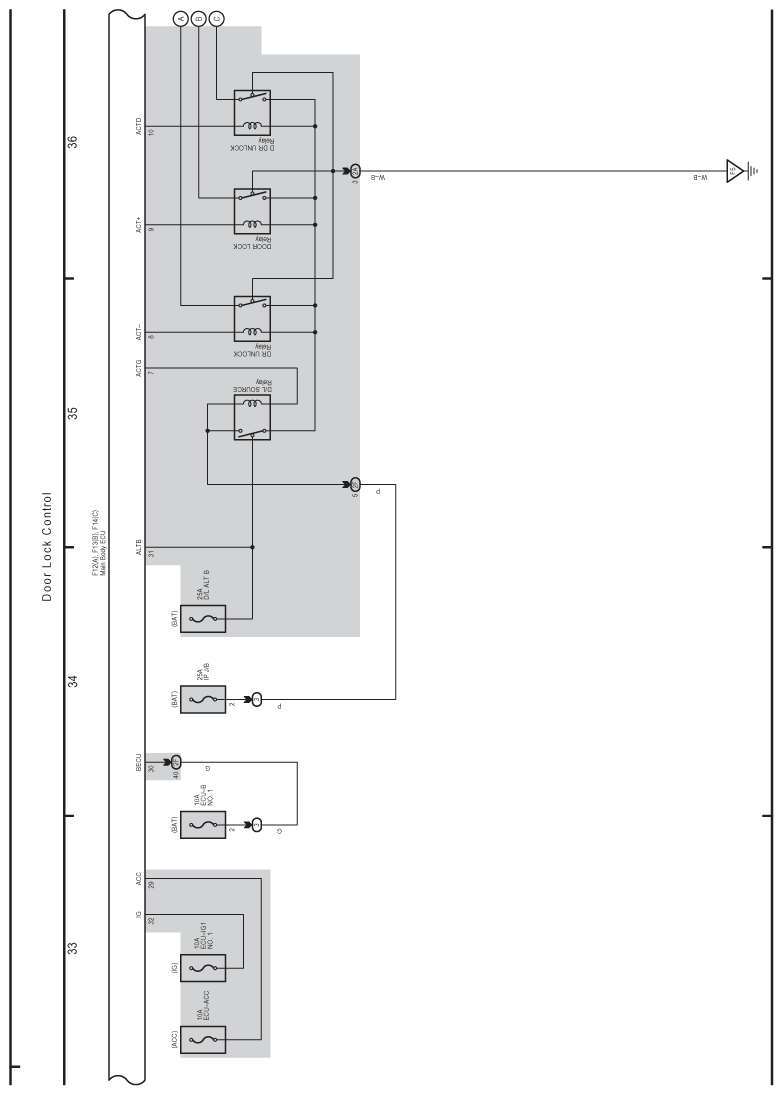

Fig 9: Door Lock Control Electrical Wiring Diagram (1 Of 2)

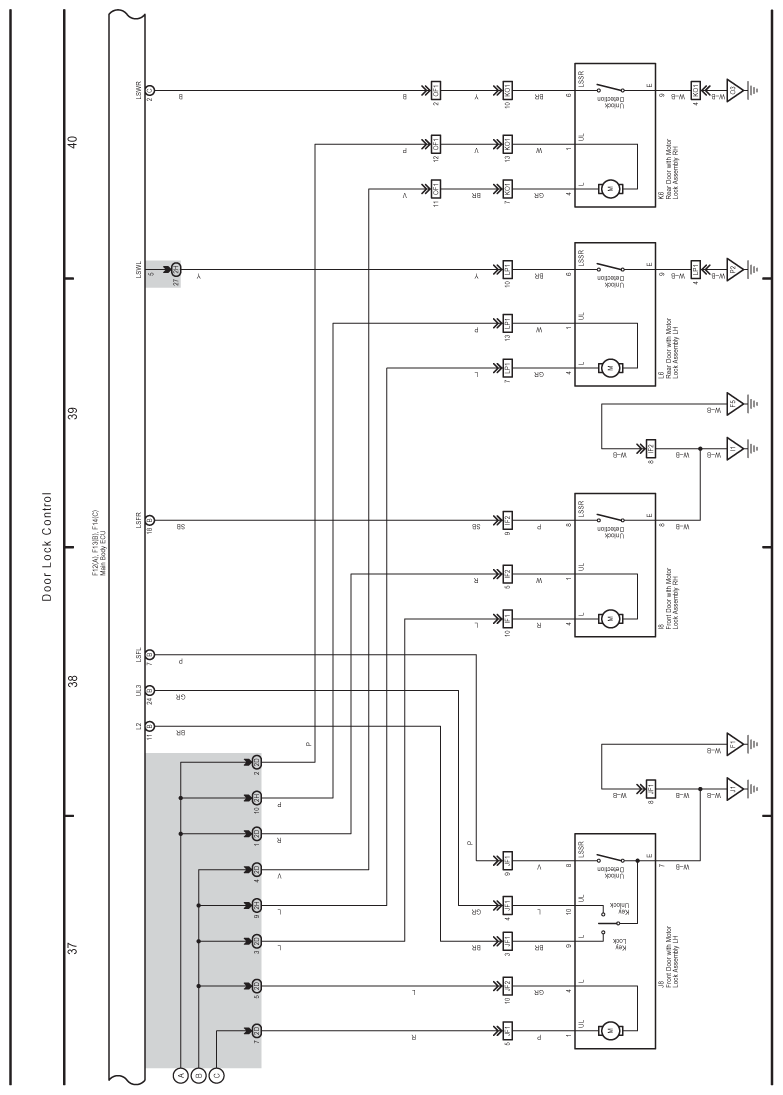

Fig 10: Door Lock Control Electrical Wiring Diagram (2 Of 2)

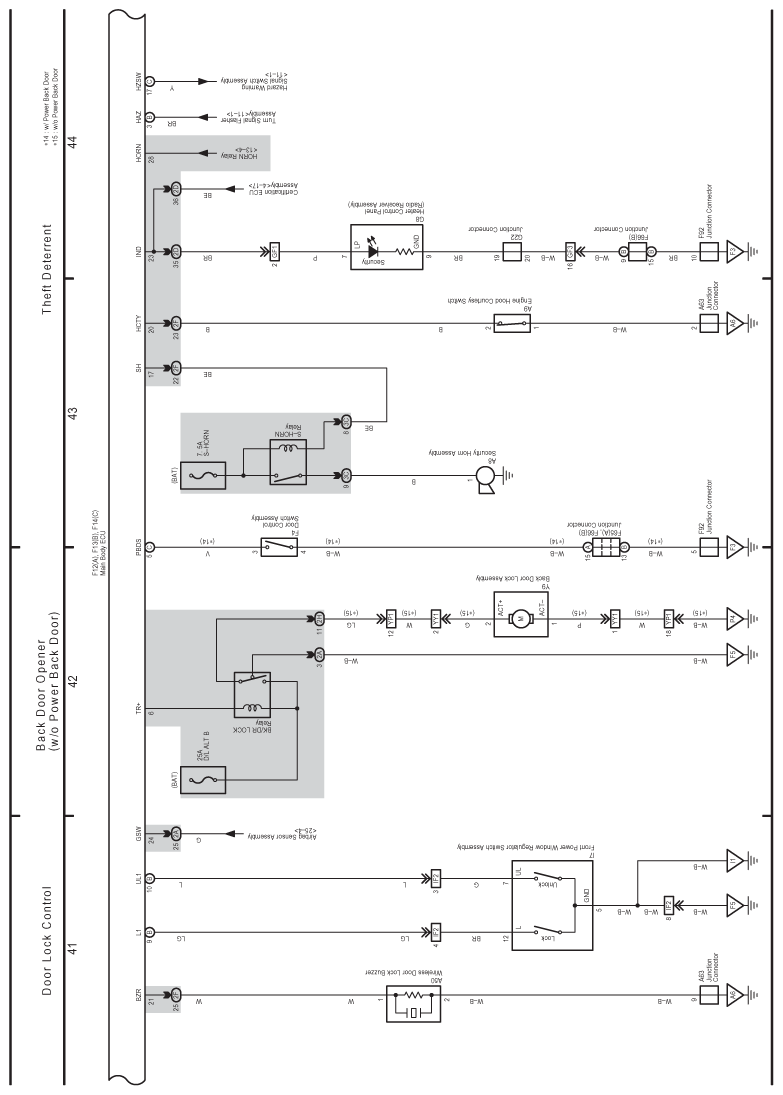

Fig 11: Theft Deterrent Electrical Wiring Diagram

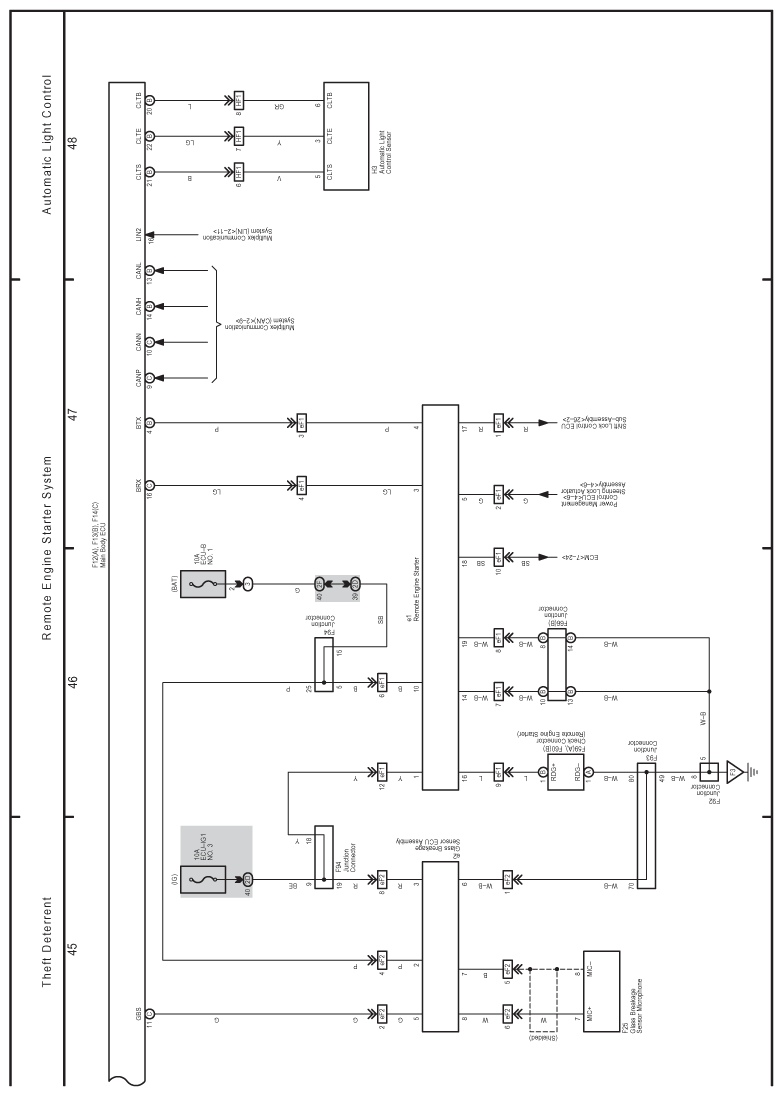

Fig 12: Remote Engine Starter System Electrical Wiring Diagram
