Automatic Glare-Resistant EC Mirror with Compass, Garage Door Opener, Parking Assist (Rear View Monitor w/o LEXUS Navigation System)

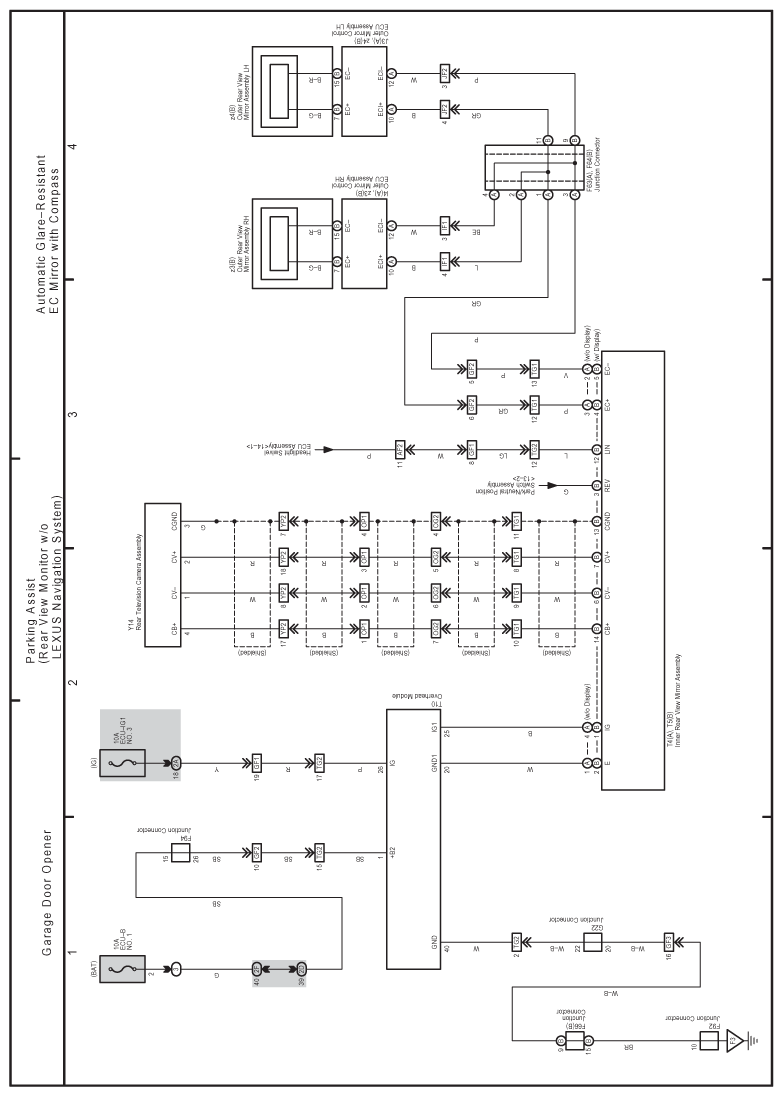

Fig 1: Parking Assist Electrical Wiring Diagram
G07574162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
