Air Suspension

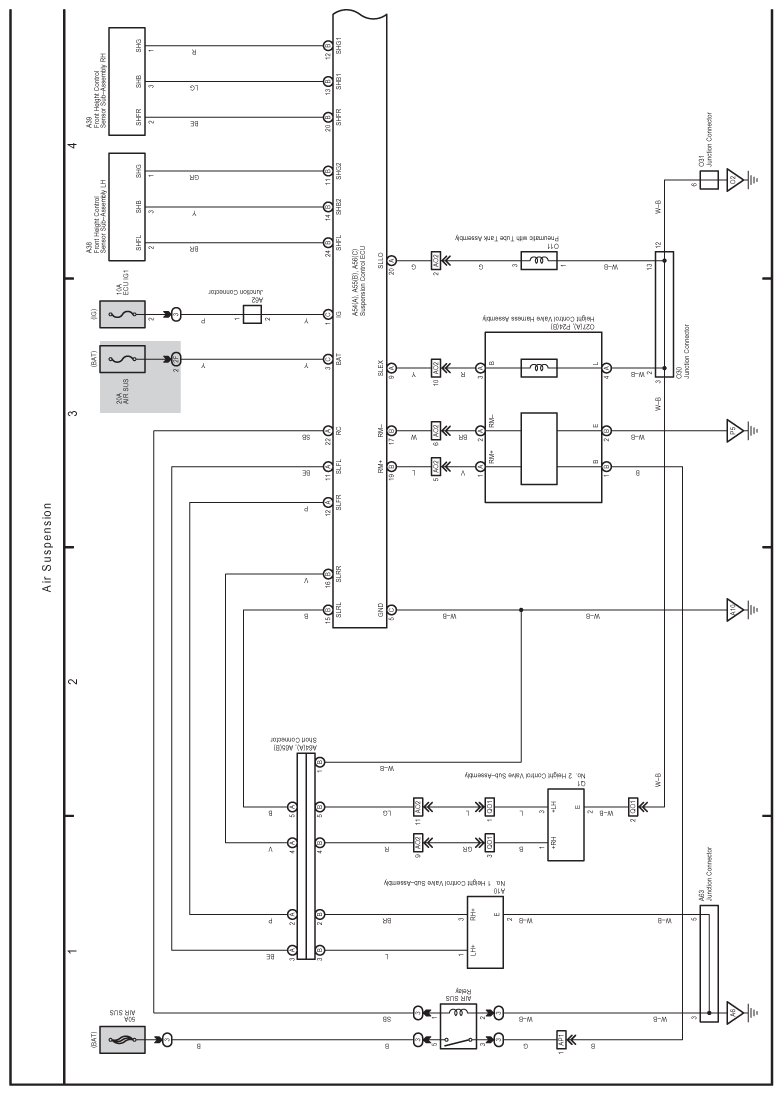

Fig 1: Air Suspension Electrical Wiring Diagram (1 Of 2)
G07574140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

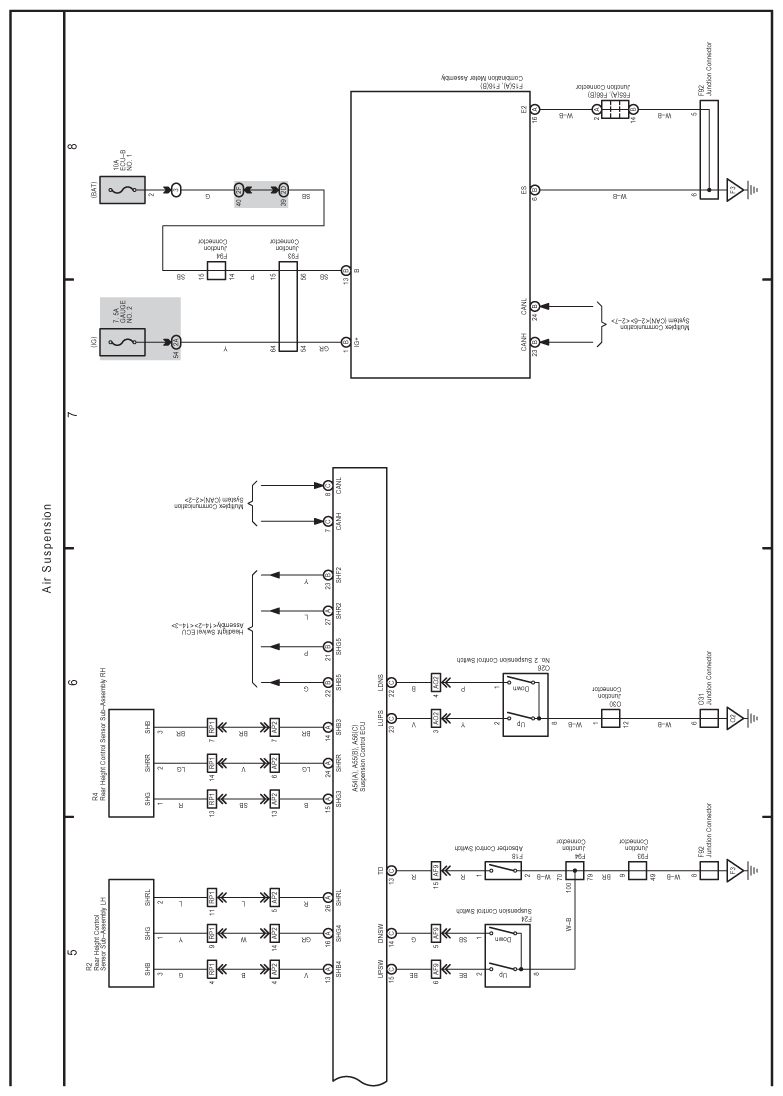

Fig 2: Air Suspension Electrical Wiring Diagram (2 Of 2)
G07574141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
