REMOVAL (To 8/2009): Removal

PRECAUTION (w/ Air Suspension)
NOTE:
Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .
PRECAUTION (w/ Navigation System for HDD)
NOTE:
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal. Refer to PRECAUTION .
REMOVE FRONT BUMPER ASSEMBLY
HINT:

Refer to REMOVAL .
REMOVE RADIATOR ASSEMBLY WITH FAN SHROUD AND FAN MOTOR
HINT:

Refer to REMOVAL .
REMOVE V-RIBBED BELT
HINT:

Refer to REMOVAL .
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 34
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system. Refer to PRECAUTION .

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE GENERATOR ASSEMBLY
1. Turn back the terminal cap.

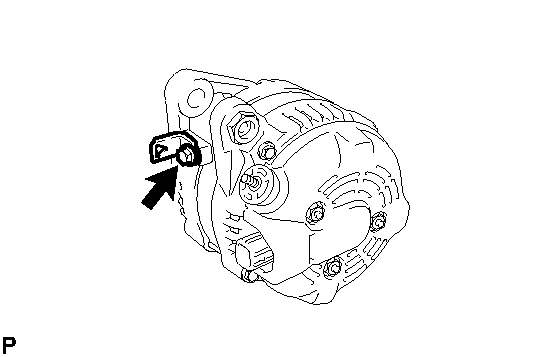

  Fig 1: Remove the nut and disconnect the wire harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut and disconnect the wire harness from terminal B.
3. Disconnect the generator connector from the generator assembly.
4. Disconnect the connector from the compressor and magnetic clutch.
5. Disconnect the wire harness clamps.
6. Remove the bolt and nut from the cylinder block.

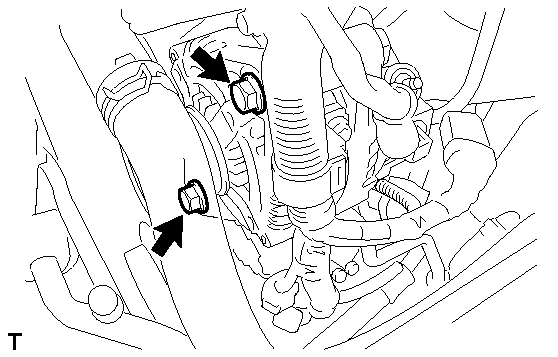

  Fig 2: Identifying Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Disconnect the wire harness clamp and remove the generator bracket.
8. Remove the 2 bolts.

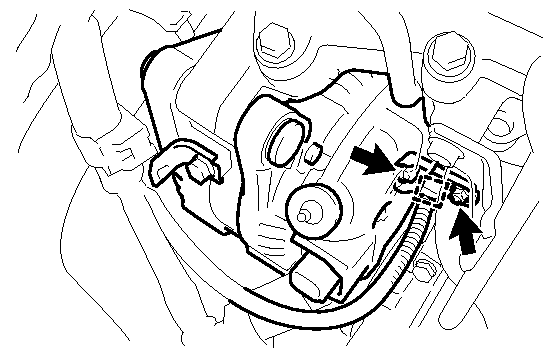

  Fig 3: Locating Generator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Remove the bolt and the wire harness clamp stay.

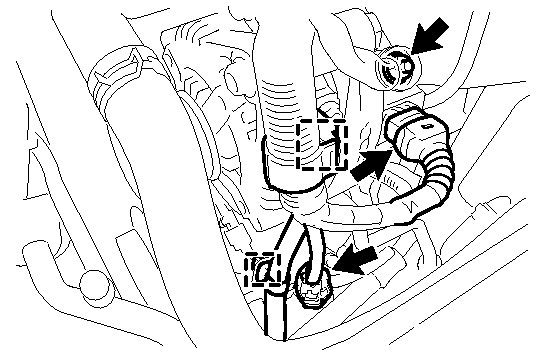

  Fig 4: Identifying Wire Harness Clamp Stay Bolt
