REMOVAL (To 8/2009): Removal

PRECAUTION (w/ Air Suspension)
REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
1. Depress the brake pedal and hold it.
2. Using a hexagon wrench (6 mm), loosen the cross groove joint set bolts 1/2 turn.
  NOTE:
  - Put a piece of cloth or equivalent into the inside of the universal joint cover so that the boot does not touch the inside of the universal joint cover.
  - Do not remove the bolts.

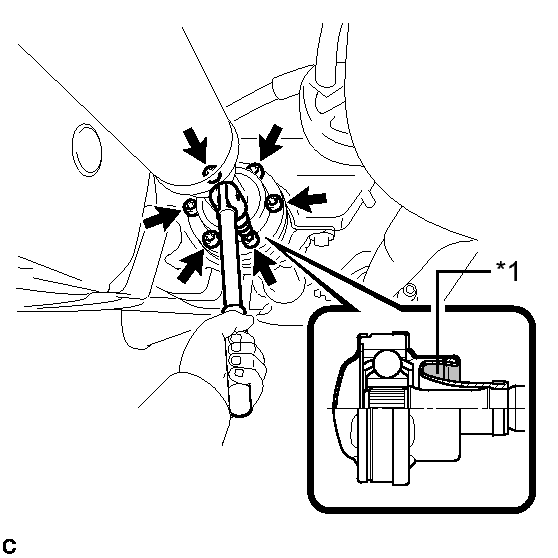

  Fig 1: Loosen The Cross Groove Joint Set Bolts 1/2 Turn
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Piece of Cloth

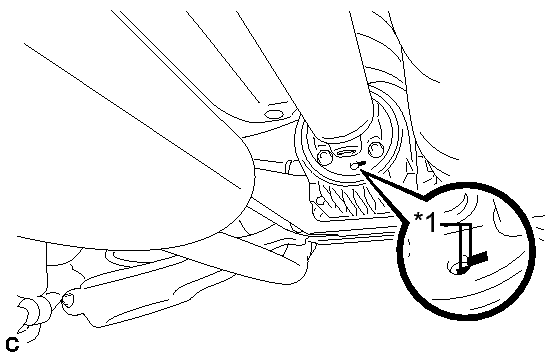

3. Place matchmarks on the rear propeller shaft and rear drive pinion flange sub-assembly.

  Fig 2: Place matchmarks on the rear propeller shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Matchmark

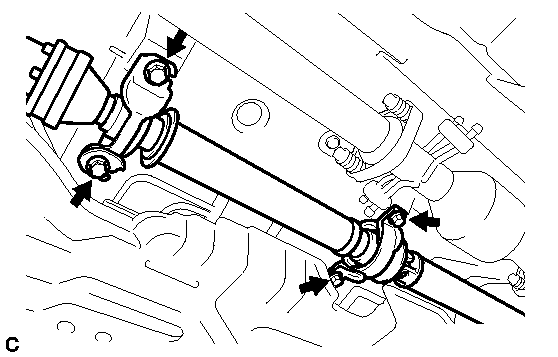

4. Remove the 4 nuts, 4 bolts and 4 washers.

  Fig 3: Remove the 4 nuts, 4 bolts and 4 washers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

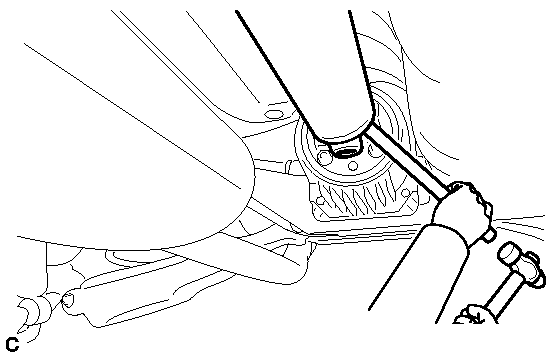

5. Using a brass bar and a hammer, remove the propeller with center bearing shaft assembly.

  Fig 4: Remove The Propeller
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 4 bolts and 4 No. 2 center support bearing washers.
  NOTE:
  When removing the bolts and washers, do not apply excessive force to the universal joint.

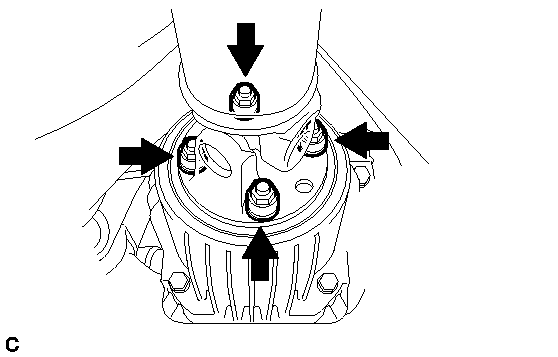

  Fig 5: Remove the 4 bolts and 4 No. 2 center support bearing washers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Pull out the propeller with center bearing shaft assembly from the transfer.
  NOTE:
  - When removing the propeller shaft, do not apply excessive force to the universal joint.
  - During and after the removal of the propeller shaft, keep the universal joint angle straight (within 15 degrees).
  - Be careful not to damage the oil seal.
8. Insert SST into the transfer to prevent oil leakage.
  - SST: 09325-20010

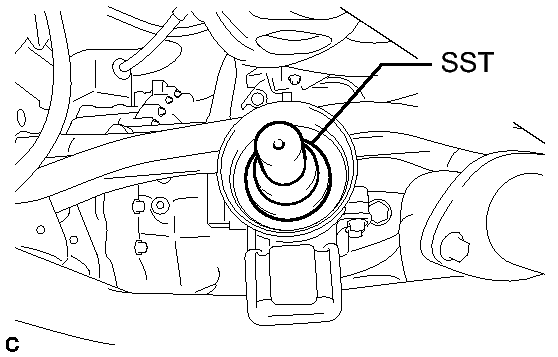

  Fig 6: Insert SST into the transfer to prevent oil leakage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to damage the oil seal.
