REMOVAL (To 8/2009): Removal

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

1. PRECAUTION (w/ Air Suspension)
   NOTE:

   Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .

2. REMOVE REAR WHEEL
3. DRAIN BRAKE FLUID
   NOTE:

   If brake fluid leaks onto any painted surface, immediately wash it off.

4. DISCONNECT REAR FLEXIBLE HOSE
   1. Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.
      Fig 1: Locating Union Bolt And Gasket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY
   1. Hold the 2 rear disc brake cylinder slide pins, and remove the 2 bolts and rear disc brake cylinder assembly.
      Fig 2: Hold the 2 rear disc brake cylinder slide pins

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Hold
      *2	Turn

6. REMOVE REAR DISC BRAKE PAD
   1. Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.
      Fig 3: Remove the 2 rear disc brake pads

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM
   1. Remove the 2 rear disc brake anti-squeal shims from the rear disc brake pads.
8. REMOVE PAD WEAR INDICATOR PLATE

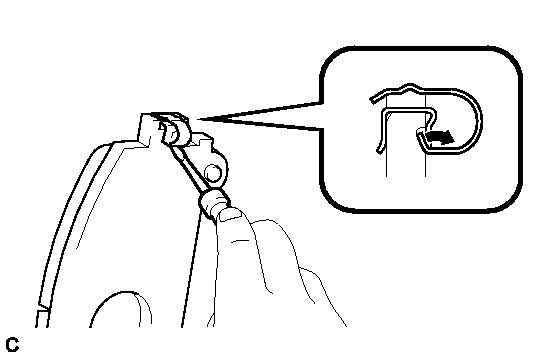

   1. Using a screwdriver, remove 2 pad wear indicator plates from the rear disc brake pads as shown in the illustration.
      Fig 4: Remove 2 Pad Wear Indicator Plates

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR DISC BRAKE PAD SUPPORT PLATE

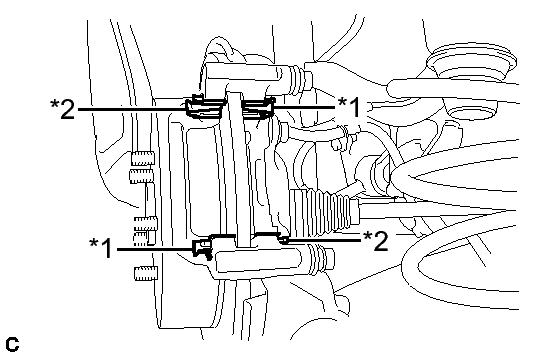

   1. Remove the 2 No. 1 rear disc brake pad support plates and 2 No. 2 rear disc brake pad support plates from the rear disc brake cylinder mounting.
      Fig 5: Remove the 2 No. 1 rear disc brake pad support plates

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	No. 1 Rear Disc Brake Pad Support Plate
      *2	No. 2 Rear Disc Brake Pad Support Plate

      NOTE:

      The No. 1 rear disc brake pad support plate and the No. 2 rear disc brake pad support plate have different shape. Be sure to put an identification mark on each rear disc brake pad support plate so that they can be reinstalled to their original position.

10. REMOVE NO. 1 REAR DISC BRAKE CYLINDER SLIDE PIN
    1. Remove the No. 1 rear disc brake cylinder slide pin from the rear disc brake cylinder mounting.

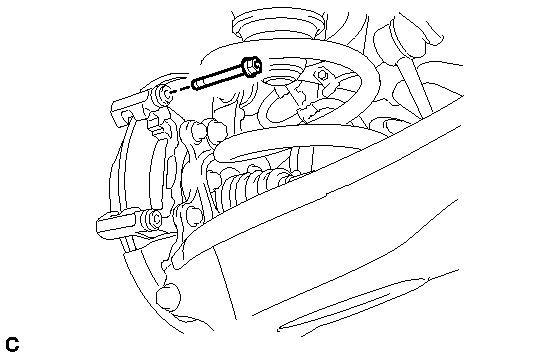

       Fig 6: Remove the No. 1 rear disc brake cylinder slide pin

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE NO. 2 REAR DISC BRAKE CYLINDER SLIDE PIN
    1. Remove the No. 2 rear disc brake cylinder slide pin from the rear disc brake cylinder mounting.

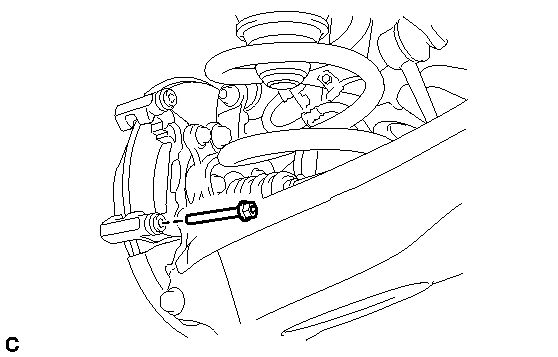

       Fig 7: Remove the No. 2 rear disc brake cylinder slide pin

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE REAR DISC BRAKE CYLINDER SLIDE BUSHING
    1. Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bushing from the No. 1 rear disc brake cylinder slide pin.
       Fig 8: Remove The Rear Disc Brake Cylinder Slide Bushing

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       TEXT IN ILLUSTRATION



       *1	Protective Tape

       NOTE:

       Do not damage the No. 1 rear disc brake cylinder slide pin.

13. REMOVE REAR DISC BRAKE BUSHING DUST BOOT

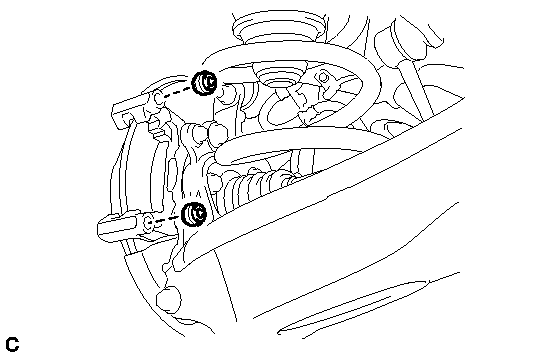

    1. Remove the 2 rear disc brake bushing dust boots from the rear disc brake cylinder mounting.
       Fig 9: Remove the 2 Rear Disc Brake Bushing Dust Boots

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE REAR DISC BRAKE CYLINDER MOUNTING
    1. Remove the 2 bolts and rear disc brake cylinder mounting from the rear axle carrier sub-assembly.
       Fig 10: Remove the 2 Bolts And Rear Disc Brake Cylinder Mounting

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
    1. Remove the parking brake shoe adjusting hole plug.
16. REMOVE REAR DISC
    1. Put matchmarks on the rear disc and the axle hub.
       Fig 11: Locating Matchmarks On The Rear Disc And The Axle Hub

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       TEXT IN ILLUSTRATION



       *1

       Matchmark

    2. Release the parking brake and remove the rear disc.

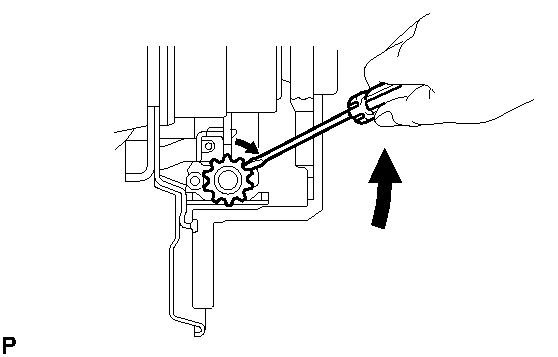

       Fig 12: Turn The Shoe Adjuster

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       HINT:

       If the disc can not be removed easily, use a screwdriver to turn the shoe adjuster as shown in the illustration in order to contract the parking brake shoes.
