INSTALLATION (To 8/2009): Installation

NOTE:

Because the left and right hoses are not interchangeable, verify the part number when installing the flexible hoses.
If the hoses are to be reused, connect them after checking the identification marks placed when each hose was disconnected.

HINT:

Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.

INSTALL FLEXIBLE HOSE BRACKET

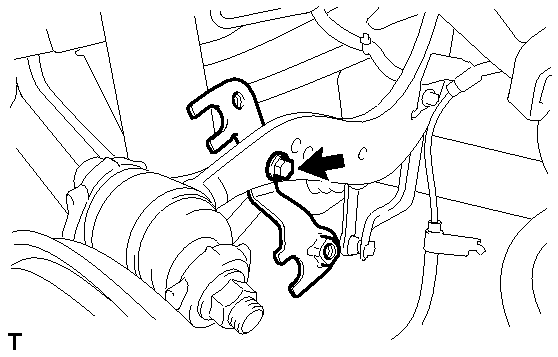

1. Install the flexible hose bracket to the rear upper control arm assembly with the bolt.

  Fig 1: Install The Flexible Hose Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)
INSTALL REAR FLEXIBLE HOSE

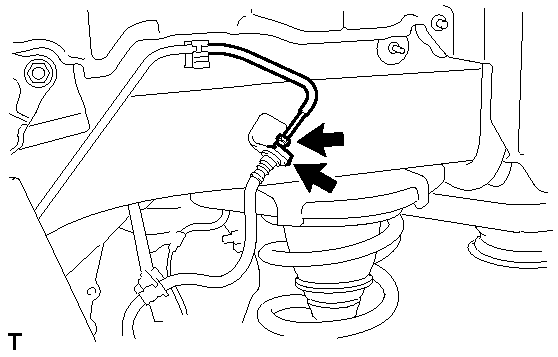

1. Install the rear flexible hose to the bracket with a new clip.

  Fig 2: Install The Rear Flexible Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Install the clip as far as it will go.
2. Using a union nut wrench, connect the brake line to the rear brake flexible hose.
  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
  NOTE:
  - Do not bend or damage the brake line.
  - Do not allow any foreign matter such as dirt and dust to enter the brake line.
  - Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench. Refer to PRECAUTION .
3. Install the rear flexible hose to the flexible hose bracket with the 2 bolts.

  Fig 3: Install The Rear Flexible Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)

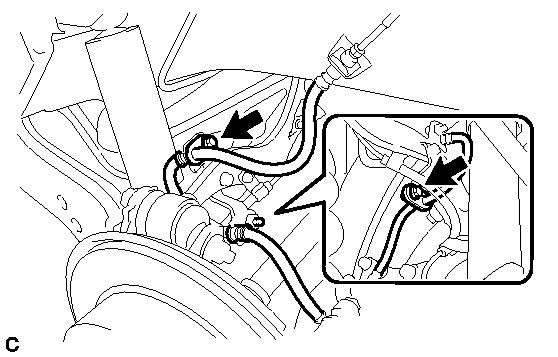

4. Connect the rear flexible hose to the rear disc brake cylinder assembly with the union bolt and a new gasket.

  Fig 4: Connect The Rear Flexible Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)
FILL RESERVOIR WITH BRAKE FLUID . Refer to REPLACEMENT - Step 1
BLEED BRAKE LINE . Refer to REPLACEMENT - Step 2
INSPECT FOR BRAKE FLUID LEAK
INSPECT FLUID LEVEL . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL REAR WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
