Back Door cannot be Opened (To 8/2009): Wiring Diagram

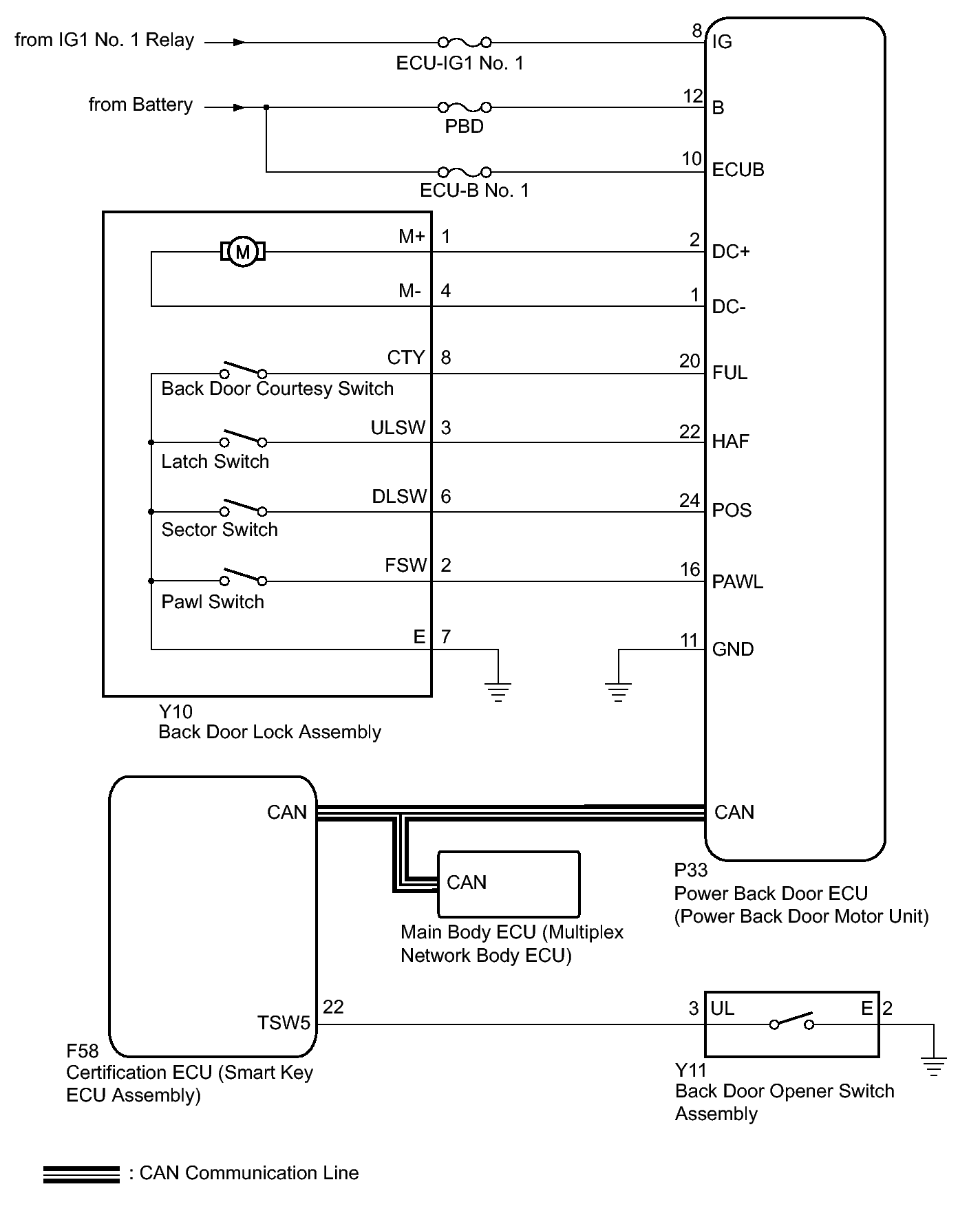

Fig 1: Identifying Back Door Wiring Diagram

GTY275792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
